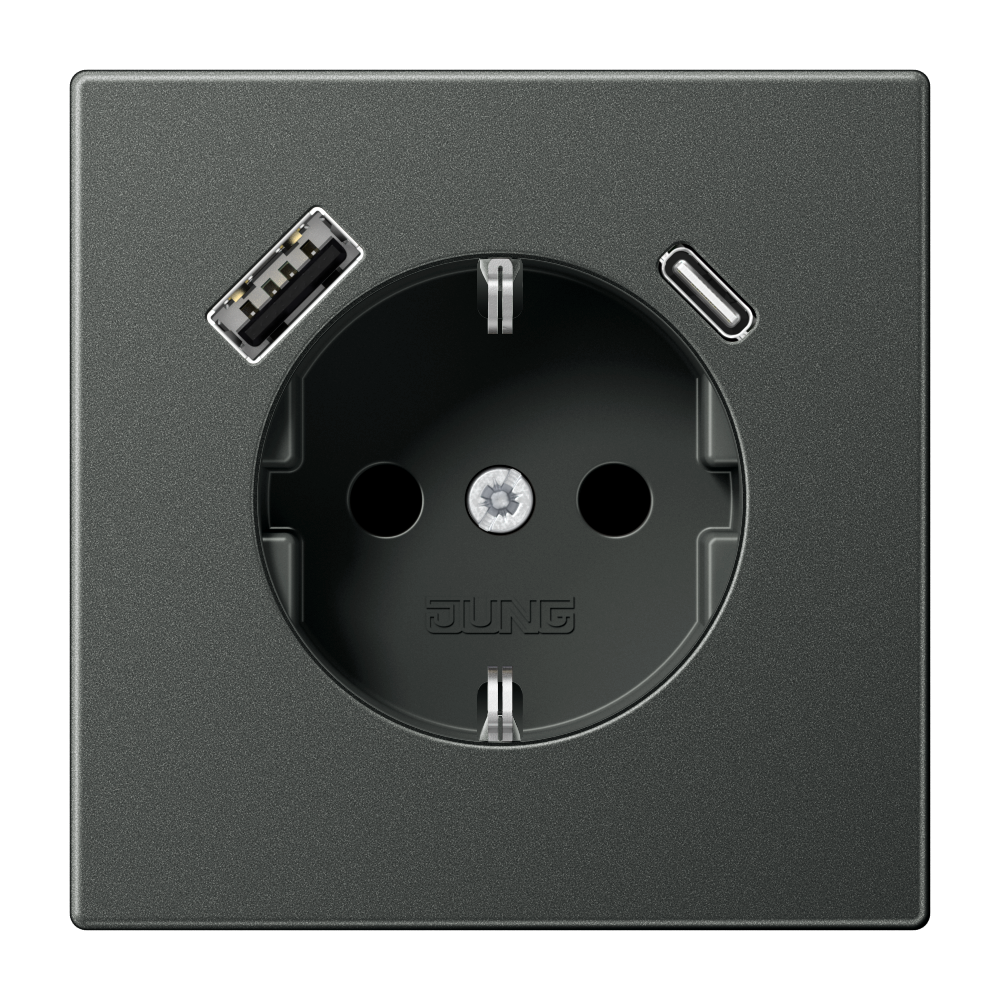

SCHUKO® socket, 16 A 250 V ~, with USB charger, 1 x type A + 1 x type C, Safety Plus, LS range, anthracite

AL 1520-15 CA AN

SCHUKO® socket with USB charger, Safety Plus, aluminium laquered, anthracite

AL 1520-15 CA AN

with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type A and 1 USB port type C
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

Metal versions

Accessories:
Accessories:
Frame 28 mm structure height ref.-no.: LS 98.. HBF ..

Accessories:
Black screws ref.-no.: S-NFB SCHUKO SW

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Article number:	AL 1520-15 CA AN
EAN/GTIN:	4011377214088
Colour:	anthracite (aluminium lacquered)
Material:	aluminium laquered
Type:	1 x type A + 1 x type C
Width:	70 mm
Height:	70 mm

Read less... Read more...

Technical data

Rated voltage:	AC 220 ... 250 V ~
Mains frequency:	50/60 Hz
Rated current:	16 A
Output voltage USB:	DC 5 V
Output current USB (total):	3 A
Stand-by power:	≤ 25 mW
Ambient temperature:	+5 ... +35 °C
Storage/transport temperature:	−20 ... +70 °C
Connection mode:	screwless terminals
single wire:	1.5 ... 2.5 mm²
stranded without ferrule:	1.5 ... 2.5 mm²

Read less... Read more...
