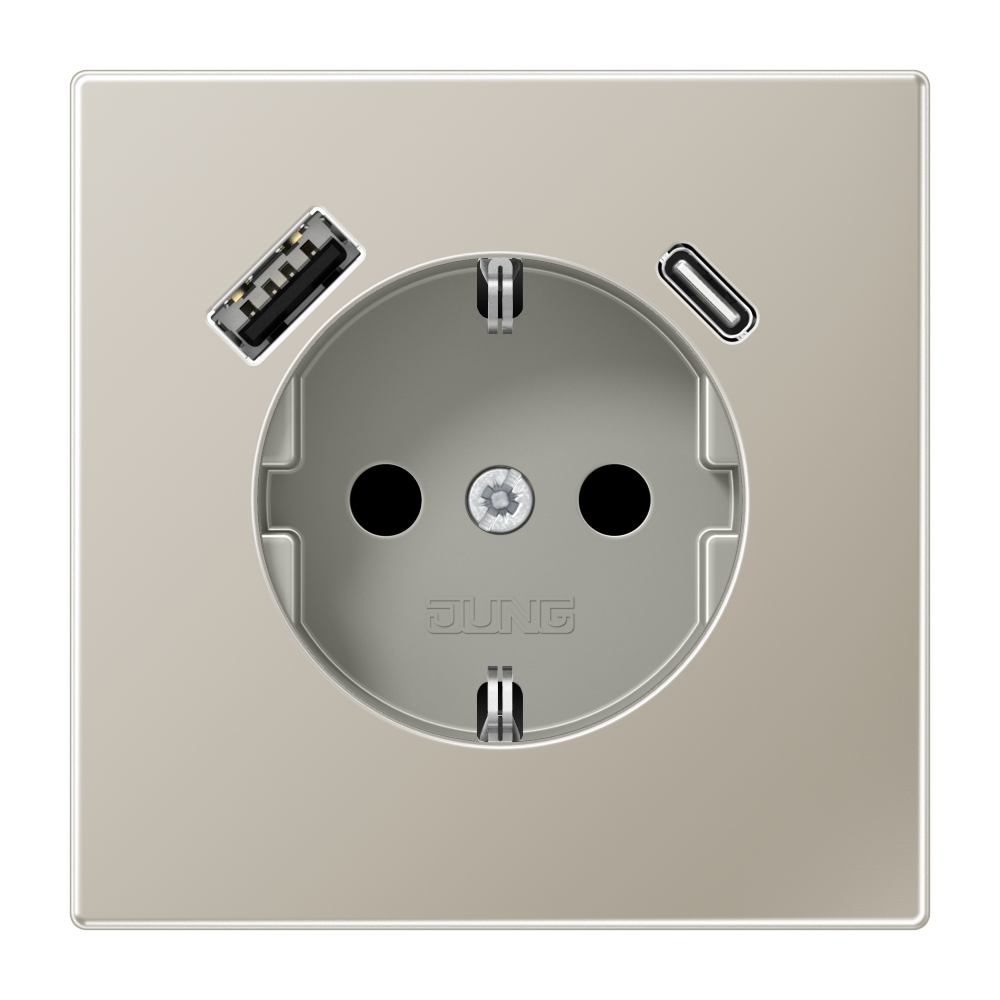

SCHUKO® socket, 16 A 250 V ~, with USB charger, 1 x type A + 1 x type C, Safety Plus, LS range, stainless steel

ES 1520-15 CA

SCHUKO® socket with USB charger, Safety Plus, stainless steel

ES 1520-15 CA

with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type A and 1 USB port type C
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

Spare part:
Centre plate ref.-no.: .. 1520-15 CA PL .. in the LS range

Metal versions

Accessories:
Frame 28 mm structure height ref.-no.: LS 98.. HBF ..

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Article number:	ES 1520-15 CA
EAN/GTIN:	4011377214071
Colour:	stainless steel
Material:	stainless steel 1.4303 X4 CrNi 18-12
Type:	1 x type A + 1 x type C
Width:	70 mm
Height:	70 mm

Read less... Read more...

Technical data

Rated voltage:	AC 220 ... 250 V ~
Mains frequency:	50/60 Hz
Rated current:	16 A
Output voltage USB:	DC 5 V
Output current USB (total):	3 A
Stand-by power:	≤ 25 mW
Ambient temperature:	+5 ... +35 °C
Storage/transport temperature:	−20 ... +70 °C
Connection mode:	screwless terminals
single wire:	1.5 ... 2.5 mm²
stranded without ferrule:	1.5 ... 2.5 mm²

Read less... Read more...

Downloads

Show all downloads

Operating instructions	EN Select language Select language DE ES FR NL NO
Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AT AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.136 KG
Length	85 MM
Height	73 MM
Width	85 MM
Carton
Packaging unit	1 pc.
Weight	0.136 KG
Length	85 MM
Height	73 MM
Width	85 MM
Outer carton
Packaging unit	10 pc.
Weight	1.486 KG
Length	360 MM
Height	90 MM
Width	175 MM
Palette
Packaging unit	1200 pc.
Weight	205.84 KG
Length	1200 MM
Height	1490 MM
Width	800 MM
