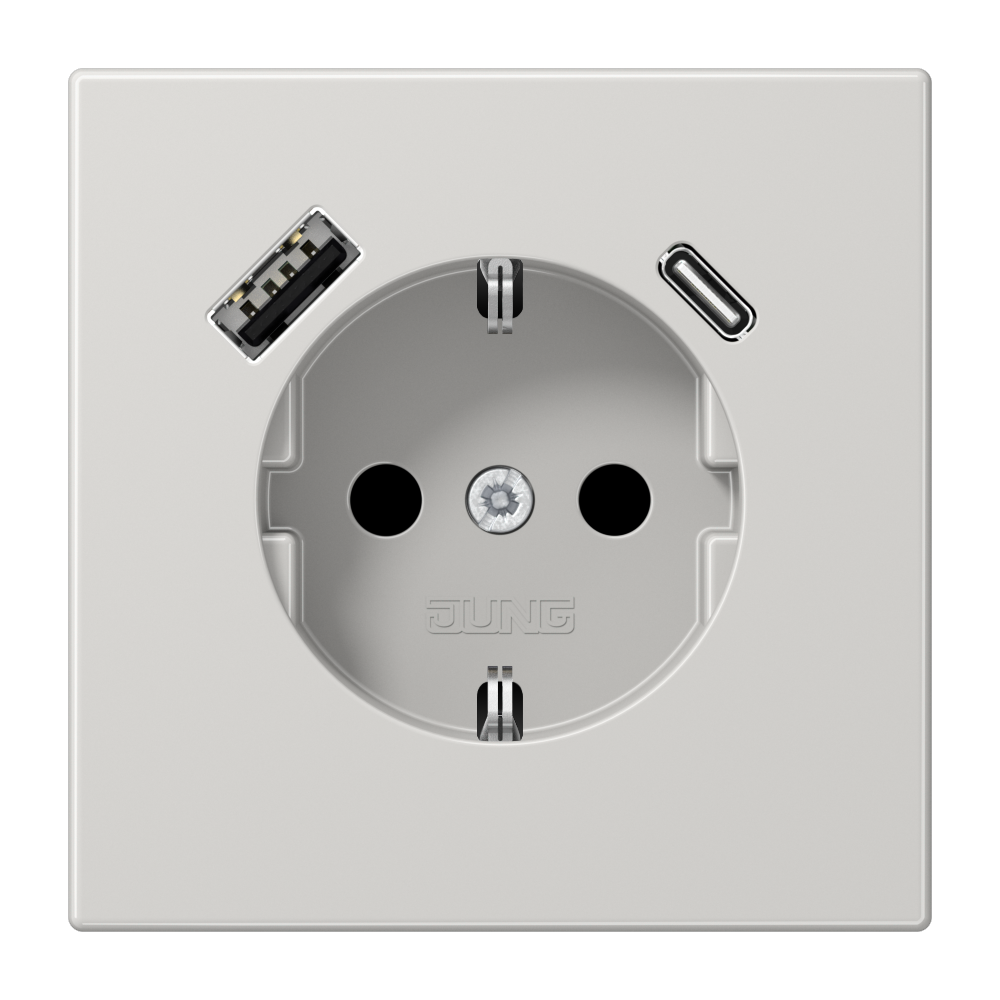

SCHUKO® socket, 16 A 250 V ~, with USB charger, 1 x type A + 1 x type C, Safety Plus, LS range, light grey

LS 1520-15 CA LG

SCHUKO® socket with USB charger, Safety Plus, thermoplastic, light grey

LS 1520-15 CA LG

with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type A and 1 USB port type C
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

Thermoplastic (breakproof) high-gloss

Accessories:
Frame 28 mm structure height ref.-no.: LS 98.. HBF ..

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Article number:	LS 1520-15 CA LG
EAN/GTIN:	4011377184664
Colour:	light grey
Material:	thermoplastic
Type:	1 x type A + 1 x type C
Width:	70 mm
Height:	70 mm

Read less... Read more...

Technical data

Rated voltage:	AC 220 ... 250 V ~
Mains frequency:	50/60 Hz
Rated current:	16 A
Output voltage USB:	DC 5 V
Output current USB (total):	3 A
Stand-by power:	≤ 25 mW
Ambient temperature:	+5 ... +35 °C
Storage/transport temperature:	−20 ... +70 °C
Connection mode:	screwless terminals
single wire:	1.5 ... 2.5 mm²
stranded without ferrule:	1.5 ... 2.5 mm²

Read less... Read more...

Downloads

Show all downloads

Operating instructions	EN Select language Select language DE ES FR NL NO
Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.126 KG
Length	70 MM
Height	60 MM
Width	70 MM
Carton
Packaging unit	1 pc.
Weight	0.152 KG
Length	86 MM
Height	72 MM
Width	82 MM
Outer carton
Packaging unit	10 pc.
Weight	1.638 KG
Length	360 MM
Height	88 MM
Width	180 MM
