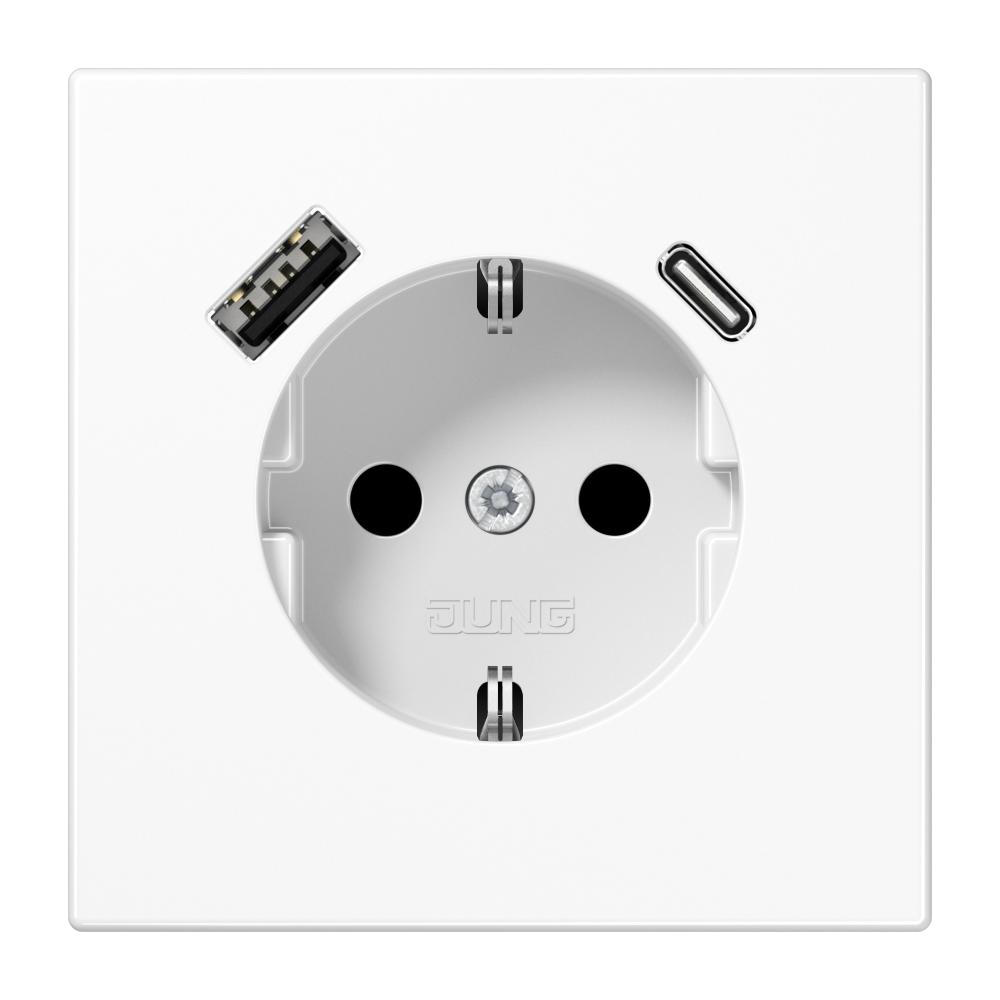

SCHUKO® socket, 16 A 250 V ~, with USB charger, 1 x type A + 1 x type C, Safety Plus, LS range, white

LS 1520-15 CA WW

SCHUKO® socket with USB charger, Safety Plus, thermoplastic, white
arrow-slider
arrow-slider
  • SCHUKO® socket with USB charger, Safety Plus, thermoplastic, white
arrow-left-slim
arrow-right-slim
  • SCHUKO® socket with USB charger, Safety Plus, thermoplastic, white
LS 1520-15 CA WW
BPIK_C2CCertMark_Bronze_blackontransparent_v3
arrow-left-slim
arrow-right-slim
  • SCHUKO® socket with USB charger, Safety Plus, thermoplastic, white
with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type A and 1 USB port type C
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm2

Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

Thermoplastic (breakproof) high-gloss

Accessories:
Accessories:
Frame 28 mm structure height ref.-no.: LS 98.. HBF ..

Cradle to Cradle certified

Read less... Read more...
Individual colour printing possible
BPIK_C2CCertMark_Bronze_blackontransparent_v3
More articles

Information

Article number: LS 1520-15 CA WW
EAN/GTIN: 4011377184640
Colour: white
Material: thermoplastic
Type: 1 x type A + 1 x type C
Width: 70 mm
Height: 70 mm
Read less... Read more...

Technical data

Rated voltage:AC 220 ... 250 V ~
Mains frequency:50/60 Hz
Rated current:16 A
Output voltage USB:DC 5 V
Output current USB (total):3 A
Stand-by power:≤ 25 mW
Ambient temperature:+5 ... +35 °C
Storage/transport temperature:−20 ... +70 °C
Connection mode:screwless terminals
single wire:1.5 ... 2.5 mm²
stranded without ferrule:1.5 ... 2.5 mm²
Read less... Read more...
Downloads
Show all downloads
Operating instructions
EN
Select language
Select language
DE
ES
FR
NL
NO
Tendering text
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
EC Declaration of Conformity
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Article datasheet
EN
Select language
Select language
DE
AE
GB
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.126 KG
Length 70 MM
Height 60 MM
Width 70 MM
Carton
Packaging unit 1 pc.
Weight 0.152 KG
Length 86 MM
Height 72 MM
Width 82 MM
Outer carton
Packaging unit 10 pc.
Weight 1.638 KG
Length 360 MM
Height 88 MM
Width 180 MM
Palette
Packaging unit 1200 pc.
Weight 223.84 KG
Length 1200 MM
Height 1550 MM
Width 800 MM
Read less... Read more...
