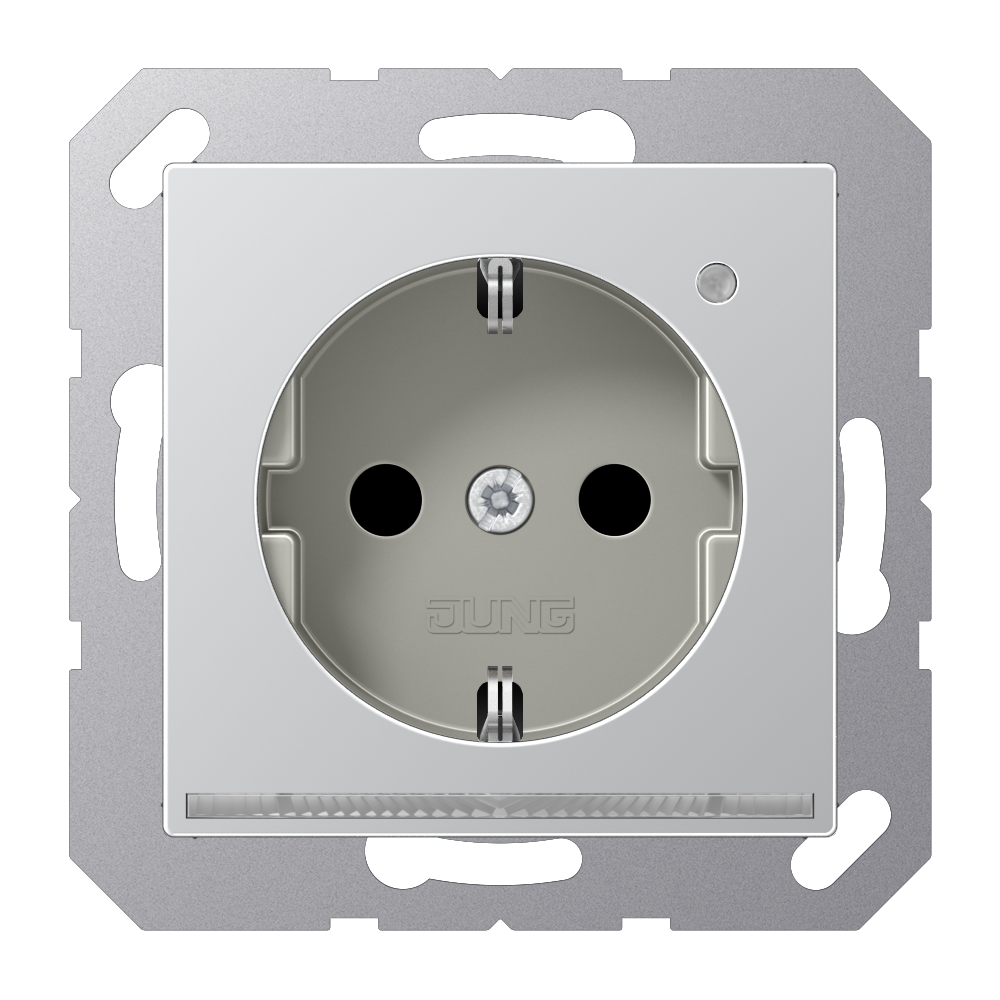

SCHUKO® socket with LED floor pilot light, 16 A 250 V ~, Safety Plus, thermoplastic lacquered, A range, aluminium

A 1520-O AL LNW

SCHUKO® socket with LED floor pilot light, Safety Plus, thermoplastic lacquered, aluminium

A 1520-O AL LNW

with LED floor pilot light
with integrated brightness sensor
with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid wires up to 2.5 mm²

installation into deep flush box
with white LEDs (colour temperature 3500 K)
power consumption stand-by / ON: 0.3 / 0.5 W
Supporting frame, claws and claw screws are integrated into the earth protection.

Thermoplastic (breakproof) lacquered

Read less... Read more...

Individual colour printing possible

Article number:	A 1520-O AL LNW
EAN/GTIN:	4011377154933
Colour:	aluminium
Material:	thermoplastic lacquered

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
