SCHUKO® socket with LED floor pilot light, 16 A 250 V ~, Safety Plus, thermoplastic, AS/A range, white

A 1520-O WW LNW

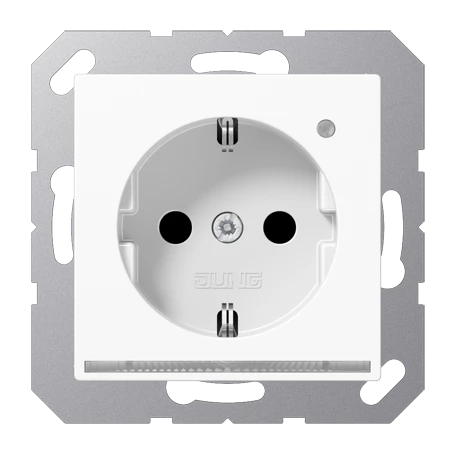

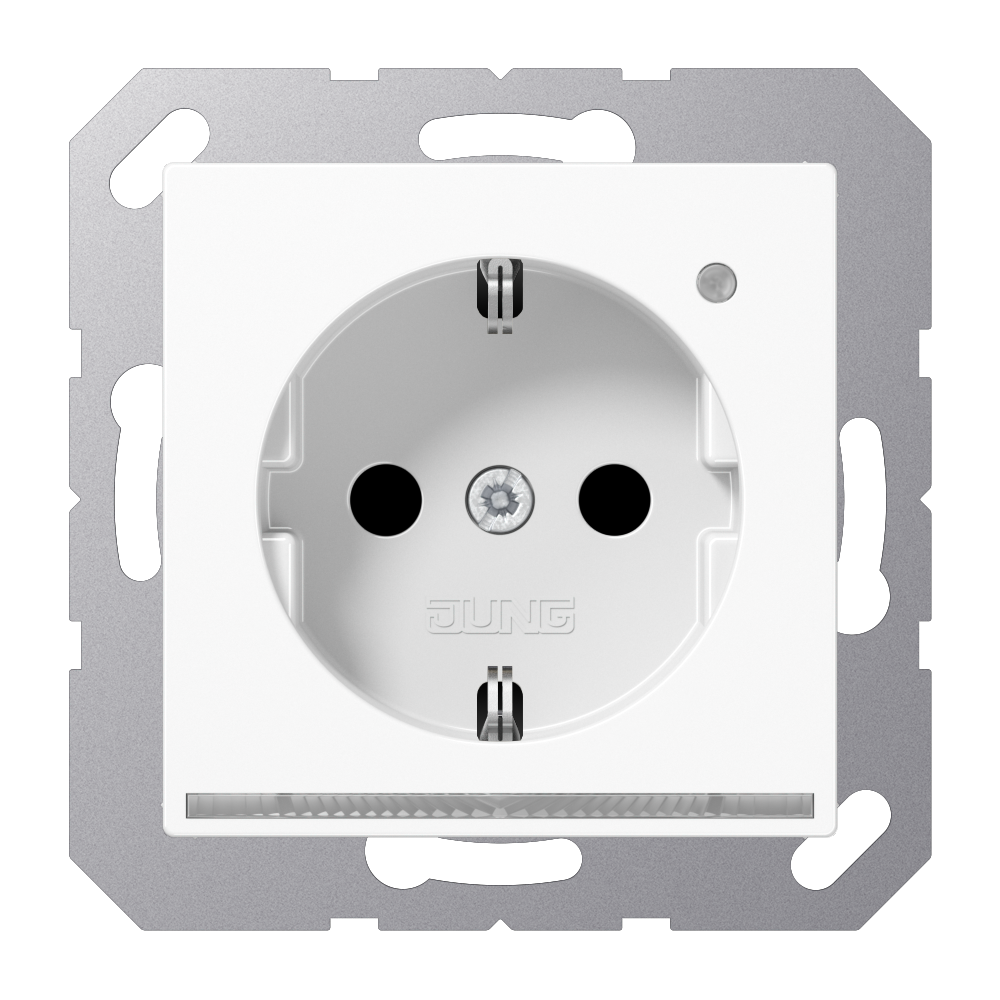

SCHUKO® socket with LED floor pilot light, Safety Plus, thermoplastic, white

A 1520-O WW LNW

with LED floor pilot light
with integrated brightness sensor
with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid wires up to 2.5 mm²

installation into deep flush box
with white LEDs (colour temperature 3500 K)
power consumption stand-by / ON: 0.3 / 0.5 W
Supporting frame, claws and claw screws are integrated into the earth protection.

Thermoplastic (breakproof) high-gloss

Article number:	A 1520-O WW LNW
EAN/GTIN:	4011377154919
Colour:	white
Material:	thermoplastic

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Single item
Packaging unit	1 pc.
Weight	0.111 KG
Length	85 MM
Height	73 MM
Width	85 MM
Carton
Packaging unit	1 pc.
Weight	0.111 KG
Length	85 MM
Height	73 MM
Width	85 MM

SCHUKO® socket with LED floor pilot light, 16 A 250 V ~, Safety Plus, thermoplastic, AS/A range, white

A 1520-O WW LNW
