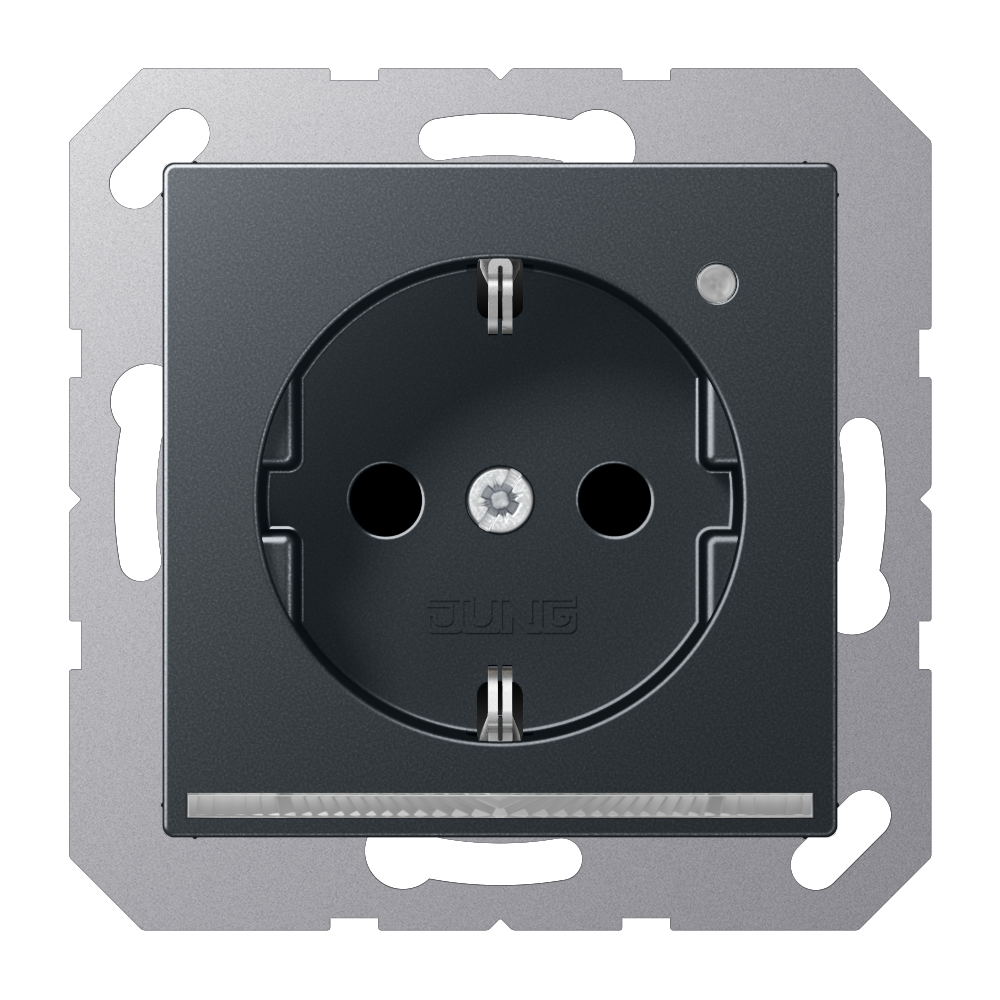

SCHUKO® socket with LED floor pilot light, 16 A 250 V ~, Safety Plus, thermoplastic lacquered, A range, matt anthracite

A 1520-O ANM LNW

SCHUKO® socket with LED floor pilot light, Safety Plus, thermoplastic lacquered, matt anthracite

A 1520-O ANM LNW

with LED floor pilot light
with integrated brightness sensor
with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid wires up to 2.5 mm²

installation into deep flush box
with white LEDs (colour temperature 3500 K)
power consumption stand-by / ON: 0.3 / 0.5 W
Supporting frame, claws and claw screws are integrated into the earth protection.

matt lacquered

Plastic design cover made from 95% recycled material in accordance with DIN EN ISO 14021 - sustainable, conserves resources

Accessories:
Black screws ref.-no.: S-NFB SCHUKO SW

Read less... Read more...

Individual colour printing possible

Article number:	A 1520-O ANM LNW
EAN/GTIN:	4011377154971
Colour:	matt anthracite
Material:	thermoplastic lacquered

Read less... Read more...
