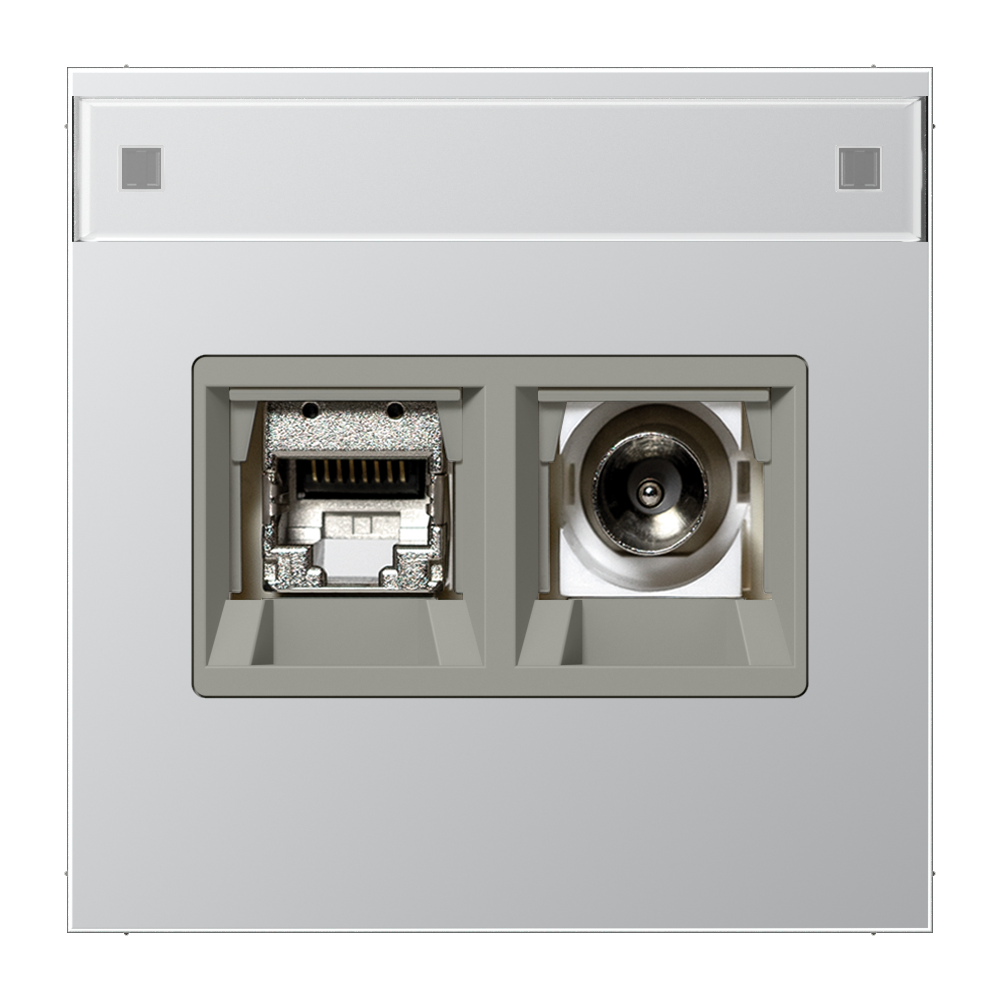

Smart TV socket, with inscription field, LS range, aluminium

MMD AL 4521

MMD AL 4521

(with supporting frame, screw fixing only)
cover with snap-on fixing
with inscription field 12 x 55 mm
shutter with spring
including universal modular jack socket ref.-no.: UMA-CAT6A-25 and IEC plug module for antenna cables

Consider bending radius and various plug types. Ensure sufficient installation space.
Spare part:
Transparent cover ref.-no.: M 20 NA

Metal versions

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Individual laser engraving possible

Article number:	MMD AL 4521
EAN/GTIN:	4011377332638
Colour:	aluminium

Read less... Read more...

Technical data

External connection:	IEC male, IEC 60169-2
Internal connection:	F female, IEC 60169-24
Impedance:	75 Ohm
Frequency range:	5 ... 2,400 MHz
Attenuation:	0.0 dB
Installation depth:	universal modular jack socket: 28 mm (not considering cables) IEC plug module: 30 mm (not considering cables)
Note:	Use right angle plug. Consider bending radius. Ensure sufficient installation space.
