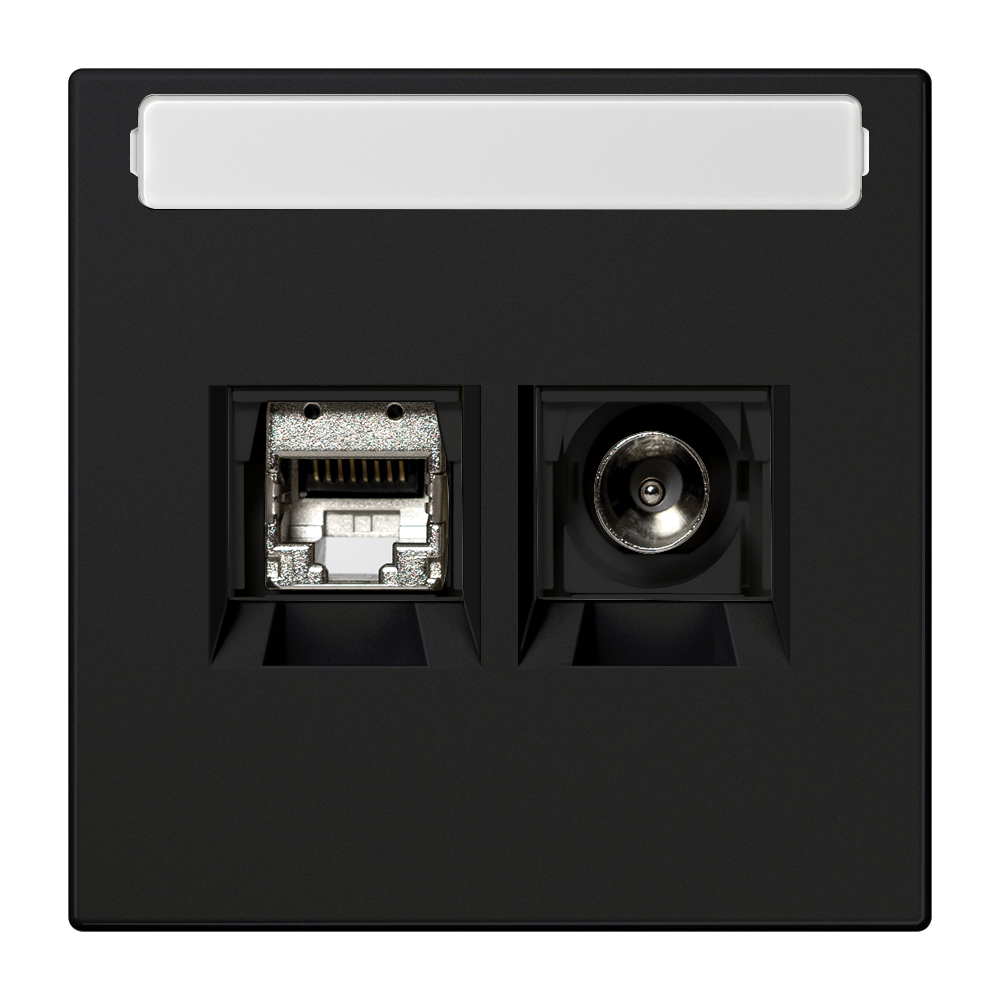

Smart TV socket, with inscription field, thermoplastic lacquered, LS range, matt graphite black

MMD LS 4521 SWM

MMD LS 4521 SWM

(with supporting frame, screw fixing only)
cover with snap-on fixing
with inscription field 9 x 58 mm
shutter with spring
including universal modular jack socket ref.-no.: UMA-CAT6A-25 and IEC plug module for antenna cables

Consider bending radius and various plug types. Ensure sufficient installation space.
Spare part:
Transparent cover with paper inlay ref.-no.: CD 90 NA

matt lacquered

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Article number:	MMD LS 4521 SWM
EAN/GTIN:	4011377332539
Colour:	matt graphite black

Read less... Read more...

Technical data

External connection:	IEC male, IEC 60169-2
Internal connection:	F female, IEC 60169-24
Impedance:	75 Ohm
Frequency range:	5 ... 2,400 MHz
Attenuation:	0.0 dB
Installation depth:	universal modular jack socket: 28 mm (not considering cables) IEC plug module: 30 mm (not considering cables)
Note:	Use right angle plug. Consider bending radius. Ensure sufficient installation space.

Read less... Read more...

Downloads

Show all downloads

Operating instructions	EN Select language Select language DE
Installation instructions	EN Select language Select language DE
Technical drawing	Select language Select language DE
Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
