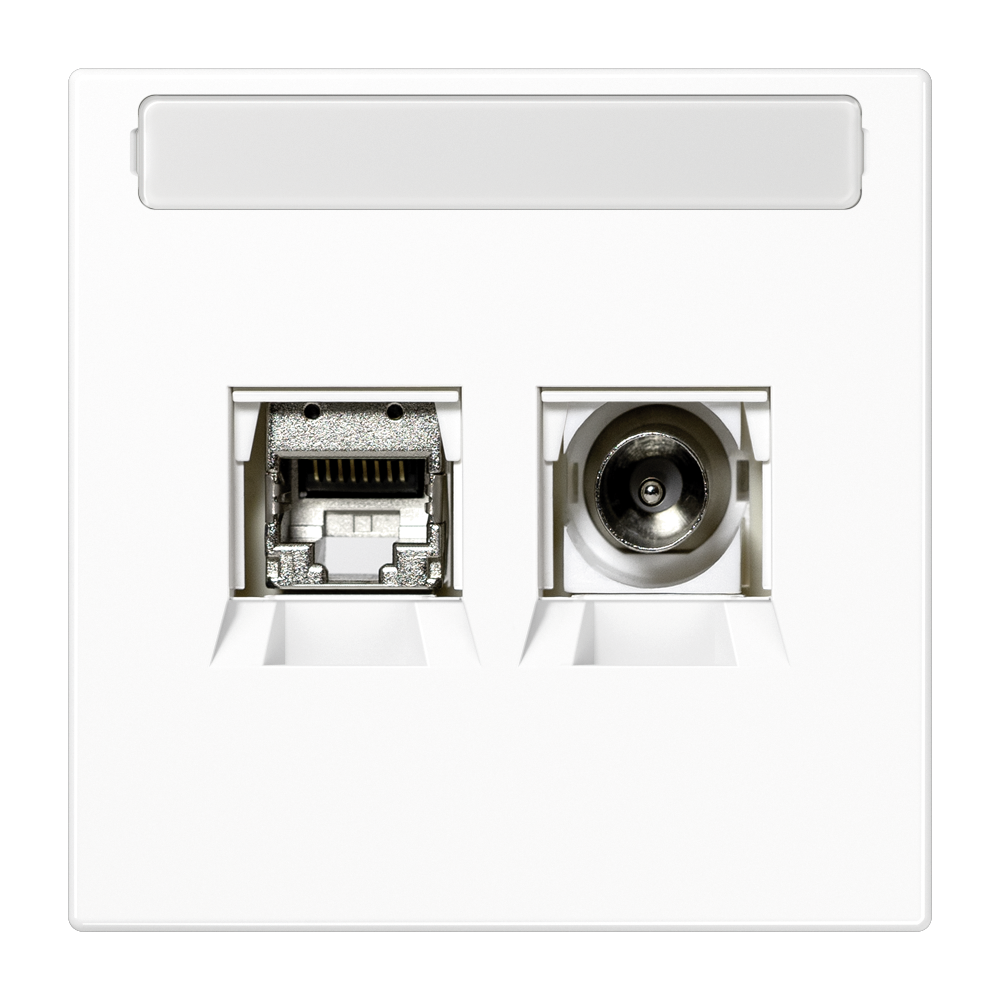

Smart TV socket, with inscription field, thermoplastic, LS range, white

MMD LS 4521 WW

MMD LS 4521 WW

(with supporting frame, screw fixing only)
cover with snap-on fixing
with inscription field 9 x 58 mm
shutter with spring
including universal modular jack socket ref.-no.: UMA-CAT6A-25 and IEC plug module for antenna cables

Consider bending radius and various plug types. Ensure sufficient installation space.
Spare part:
Transparent cover with paper inlay ref.-no.: CD 90 NA

Thermoplastic (breakproof) high-gloss

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Individual laser engraving possible

Article number:	MMD LS 4521 WW
EAN/GTIN:	4011377176287
Colour:	white

Read less... Read more...

Technical data

External connection:	IEC male, IEC 60169-2
Internal connection:	F female, IEC 60169-24
Impedance:	75 Ohm
Frequency range:	5 ... 2,400 MHz
Attenuation:	0.0 dB
Installation depth:	universal modular jack socket: 28 mm (not considering cables) IEC plug module: 30 mm (not considering cables)
Note:	Use right angle plug. Consider bending radius. Ensure sufficient installation space.

Read less... Read more...

Downloads

Show all downloads

Operating instructions	EN Select language Select language DE
Installation instructions	EN Select language Select language DE
Technical drawing	Select language Select language DE
Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.08 KG
Length	70 MM
Height	18 MM
Width	70 MM
Carton
Packaging unit	1 pc.
Weight	0.112 KG
Length	86 MM
Height	70 MM
Width	82 MM
Outer carton
Packaging unit	10 pc.
Weight	1.232 KG
Length	360 MM
Height	90 MM
Width	184 MM
Palette
Packaging unit	1200 pc.
Weight	175.72 KG
Length	1200 MM
Height	1490 MM
Width	800 MM
