JUNG HOME Pucks. Go smart.

Small devices, big effect: JUNG HOME Pucks make apartments and houses smart – really easily and with no expensive installation work. Light, shading or temperature control: the compact Pucks bring numerous intelligent functions to existing electrical installations. The beginning of a Smart Home can be implemented with individual applications and extended as needed step by step.

Compact, smart, networked.

The particularly compact design enables a simple and inconspicuous installation in flush-mounted boxes, false ceilings, roller-shutter housings or light baldachins.

Smart solutions that work.

Perfectly staged: Controlling light with JUNG HOME Pucks
Switching, dimming or changing the colour temperature: The compact pucks are used to control the lighting individually. This creates the right atmosphere at all times.
Lighting scene with DALI-2
The JUNG HOME Puck Power DALI-2 control device with Tunable White enables the continuous adjustment of brightness and colour temperature.
Read more
Retrofitting smart lighting
The 2-gang switch actuator switches lighting and common household devices via two independently usable channels.
Read more
Lighting atmosphere as required

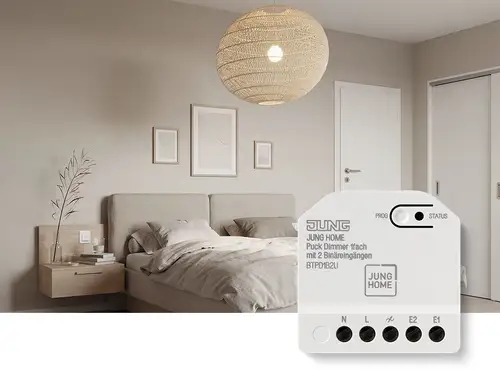

With the JUNG HOME Puck dimmer, the brightness of luminaire can be continuously adjusted.
Read more
Flexible positioning: battery-powered push-buttons
Thanks to the adhesive pad, JUNG HOME battery-powered push-buttons can also be used in areas without power cables.
Read more
Optimally coordinated: Shading control with JUNG HOME Pucks
With the JUNG HOME Puck for shading, your shutters, blinds and awnings are controlled according to need. The compact actuator makes existing installations smart and ensures more convenience, energy efficiency and security in daily life.
Shutter control with JUNG HOME Pucks
The JUNG HOME Puck blinds actuator can be mounted directly in the roller shutter box.
Read more
Retrofitting light and shading control
With the JUNG HOME push-button and the JUNG HOME app, the blinds actuator enables flexible shutter movement times, automatic functions and individual scenes.
Read more
Control awnings smartly
The blinds actuator can be installed in the housing of the awning or in the junction box to control the motor.
Read more
Demand-led room temperature control with JUNG HOME Puck and room thermostat
Comfortable and energy-efficient - the JUNG HOME Puck room thermostat regulates heating and cooling systems to the desired temperature with the Puck switch actuator and thus ensures a pleasant room climate.
Convenient room temperature control
The JUNG HOME Puck 1-gang Energy switch actuator controls electric radiators, e.g. towel warmers, and measures their energy consumption.
Read more
Heating efficiently, room by room
In combination with the Puck 2-gang switch actuator, the room thermostat controls water-based underfloor heating systems just as reliably as radiators or electric heating systems.
Read more
Convenient control of temperature and light
In rooms with infrared heating, the JUNG HOME Puck 2-gang switch actuator ensures convenient and efficient control.
Read more

JUNG HOME Pucks

The seven new JUNG HOME Pucks enable simple and budget-conscious extension of the electrical installation.
The Pucks switch and dim lighting, move blinds, shutters and awnings, control cooling and heating applications, measure energy use or switch electrical loads. Every Puck has two, separately usable, binary inputs. Furthermore, the portfolio gets a battery-operated Puck, that offers further application possibilities, such as polling window contacts. The low height simplifies installation in flush-mounted and electronics boxes, cavity wall boxes behind push-buttons, baldachins, false ceilings, roller shutter housings or in the distribution box.
BTPS2B2U 2-gang switch actuator
Switches lighting and common household devices using two independently usable channels. Particularly suitable for controlling two separate lighting circuits for example, or a combination of lighting control and heating application. Two binary inputs for switches/push-buttons or 230 V signals.
Go to catalogue
BTPSE1B2U 1-gang switch actuator Energy
Switches lighting and common household devices. Two binary inputs for switches/push-buttons or 230 V signals. With integrated measurement function for electricity consumption. In combination with the JUNG HOME room thermostat, controls, for example, hydronic, electric and infra-red heating systems.
Go to catalogue
BTPJ1B2U one-gang blinds actuator
Controls shutters, awnings and blinds, including slat adjusting. Two binary inputs for switches/push-buttons or 230 V signals (e.g. weather sensor with converter). The compact design allows installation behind the switch or in roller shutter housings.
Go to catalogue
BTPD1B2U one-gang dimmer
Controls the brightness of luminaires precisely and continuously. Two binary inputs for switches/push-buttons or 230 V signals. Suitable for installation behind switches, in baldachins or with a panel housing in false ceilings.
Go to catalogue
BTPDSTEB2U Power DALI-2 control unit TW
Controls DALI luminaires and enables continuous adjustment of brightness and colour temperature – from activated light during the day to warm light in the evening. Two binary inputs for switches/push-buttons or 230 V signals. Ideal for smaller offices and living spaces. As a DALI power supply, up to 64 DALI devices can be supplied.
Go to catalogue
BTPB2U 2-gang binary input 230 Volt
Offers the possibility to connect push-buttons or switches to the binary inputs in order to trigger scenes, operate devices or poll statuses. Ideal as an additional control unit or for integrating weather sensors.
Go to catalogue
BTPB2UB 2-gang binary input battery-powered
Independent from the 230 V supply – ideal for retrofitting or modernisation. Thanks to the particularly small design, the battery-powered binary inputs also fit into flat flush-mounted boxes. Two inputs for connecting push-buttons or other low-voltage signals, such as window contacts.
Go to catalogue

Securely networked

JUNG HOME devices are networked via Bluetooth® Mesh. Thanks to automatic encryption, the global standard makes wireless data transmission particularly secure.
More details about JUNG HOME
Light, shade, temperature: JUNG HOME essentially consists of system inserts, covers and sockets. Locally networked via Bluetooth® Mesh, you don't need to be a technology expert to make your home smart.
Read more
JUNG HOME in Virtual Reality
We have built a virtual 3D house and equipped it with JUNG HOME from the basement to the roof. You can explore this house in virtual reality. Including floor plans and concrete installation tips.
Read more
JUNG HOME in the online catalogue
Gain an overview of the variety and selection of JUNG HOME products. Detailed product descriptions, technical specifications - always up to date. The online catalogue offers search functions and filter options to easily find JUNG HOME products.
Read more

FAQ - Frequently Asked Questions about: JUNG HOME Pucks

The JUNG HOME Pucks make it particularly easy to get started with a smart home. These small devices are fitted directly behind existing switches or in flush-mounted boxes. Once installed, they take over smart control, without the need for any additional wiring.

Depending on the type, a single Puck can:

All devices connect to each other via Bluetooth® Mesh. No server or internet connection is required – the system operates entirely locally and securely.

The JUNG switch actuator puck is the simplest solution for this. It is fitted behind the existing switch and can:

  •     switch lights on and off
  •     optionally measure energy consumption
  •     be controlled via an app, scenes or timers

Technically, the Puck offers high power reserves (up to 16 A resistive load, active power up to 3680 W). This makes it suitable for almost all standard lighting situations – without the need for new cables or complex modifications.

Yes. With the various Puck models from JUNG, you can set up a complete smart home system:

  • Lighting control
  • Dimming LED lighting
  • Blind control for shading
  • Heating functions via compatible components

Up to 60 devices can work together in a mesh network. All functions - lighting, blind shading, and heating - are controlled centrally in the JUNG HOME app and combined into scenes.

That’s where the JUNG HOME blind actuator puck comes in. It is fitted behind the existing roller shutter switch and instantly turns your existing installation into a smart one.

Once installed, you can:

  •     Raise and lower the blinds via the app
  •     Set automatic timers (up to 16 per device)
  •     Astro function for sunrise and sunset
  •     Lock and safety functions such as wind alarm

The existing push-buttons can still be used, whilst the convenience of smartphone control is added. JUNG HOME Pucks also offer an elegant awning control system – smart and simple.

By combining heating control, shading and timers in shared scenes, you can avoid unnecessary running times and thereby significantly reduce your energy bills.

A decentralised system such as JUNG HOME can do exactly that and is therefore particularly well suited to saving energy. With the help of JUNG HOME Pucks, a range of options are available to address this precisely:

  •     Heating can be controlled according to a schedule and as required
  •     Roller shutters can be used automatically to regulate heat
  •     Energy measurement functions show actual consumption

JUNG HOME, in combination with JUNG HOME Pucks, is ideal for this purpose. They operate entirely locally without a server, are installed directly into the existing in-wall box, and can be easily set up via an app. Communication takes place securely via Bluetooth Mesh, so no additional control center is required. The result is a streamlined solution focused on the essentials, which is particularly well-suited for small and medium-sized retrofit projects.

It is in older buildings in particular that the JUNG HOME Pucks really come into their own:

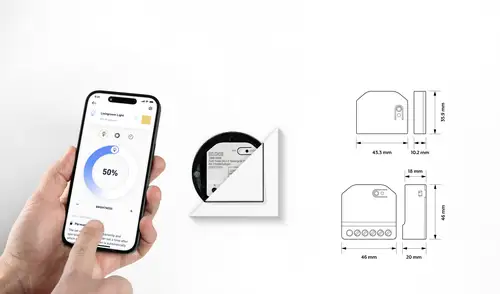

  •     very compact design (just 46 × 46 × 20 mm)
  •     can be fitted behind existing switches
  •     no new wiring required
  •     works with existing installations too

With blind actuators for motorised roller shutters and compatible heating controls, comfort and energy efficiency can be significantly improved – usually without major building work. This requires electrically operated roller shutters.
