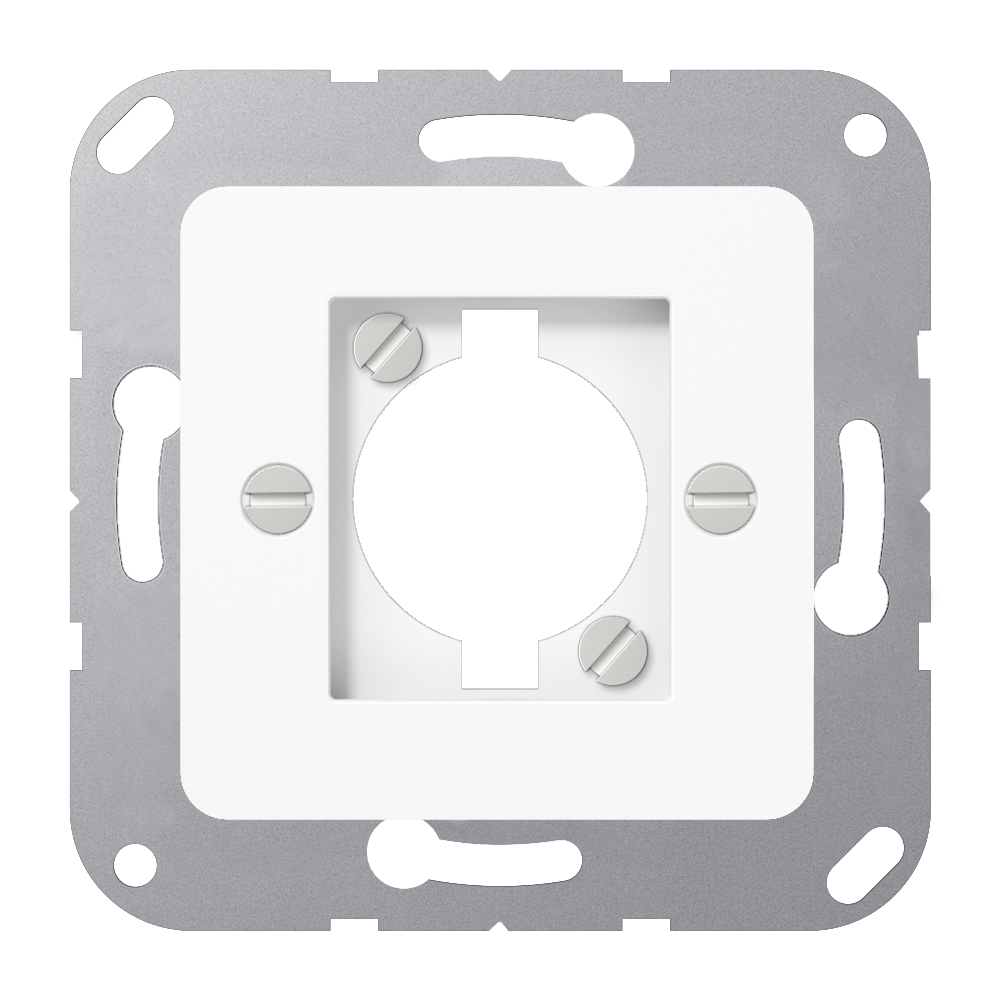

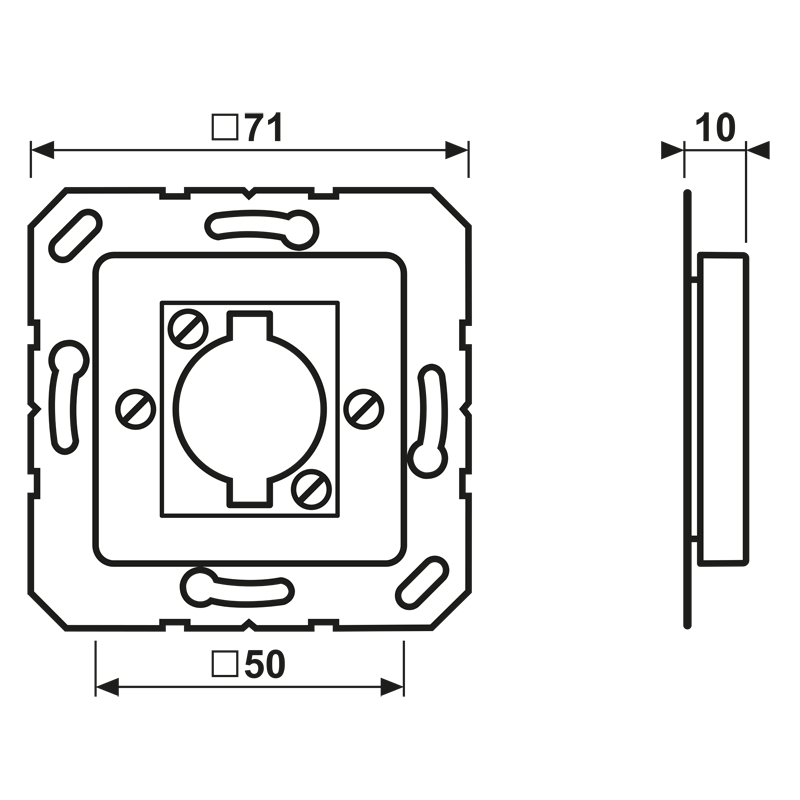

Centre plate for loudspeaker socket, for XLR connector (D Series), thermoplastic, 50 x 50 mm, white

168-1 WW

Centre plate, for loudspeaker socket, for XLR connector (D Series), white

168-1 WW

(with supporting frame, screw fixing only)
for loudspeaker socket ref.-no.: PB 4
for XLR connector ref.-no.: CXLR-S, CXLR-D
for XLR connector Neutrik D / DL / DLX Series
internal dimensions (W x H): 27.5 x 32.5 mm

Thermoplastic (breakproof) high-gloss

50 x 50 system (screw fixing)
For design ranges:
AS 500 / A 500 / A creation / A plus: with intermediate frame no.: A 590 Z..
CD 500 / CD plus: with intermediate frame no.: ..590 Z.. or hinged lid no.: CD 590 KL..
CD universal: with hinged lid .: CD 590 BFKL..
LS 990 / LS plus: with intermediate frame no.: LS 961 Z.. or hinged lid no.: LS 990 KL..
Aluminium: with hinged lid no.: AL 2990 KL
Stainless Steel: with hinged lid no.: ES 2990 KL
Anthracite: with hinged lid no.: AL 2990 KL AN
Chrome: with hinged lid no.: GCR 2990 KL
Gold: with hinged lid no.: GO 2990 KL
Gold 24 carat: with hinged lid no.: LS 990 KL GGO

Read less... Read more...

Information

Article number:	168-1 WW
EAN/GTIN:	4011377733909
Colour:	white
Material:	thermoplastic
Width:	67 mm
Height:	67 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	SG Select language Select language DE EN AE GB US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.037 KG
Length	71 MM
Height	8 MM
Width	71 MM
Carton
Packaging unit	10 pc.
Weight	0.374 KG
Length	159 MM
Height	92 MM
Width	92 MM
Palette
Packaging unit	4800 pc.
Weight	251.632 KG
Length	1200 MM
Height	1476 MM
Width	800 MM

Read less... Read more...

Additional items

CXLR-D

XLR connector with panel housing female

CXLR-S

XLR connector with panel housing male

PB 4

Loudspeaker socket (Speakon) socket
