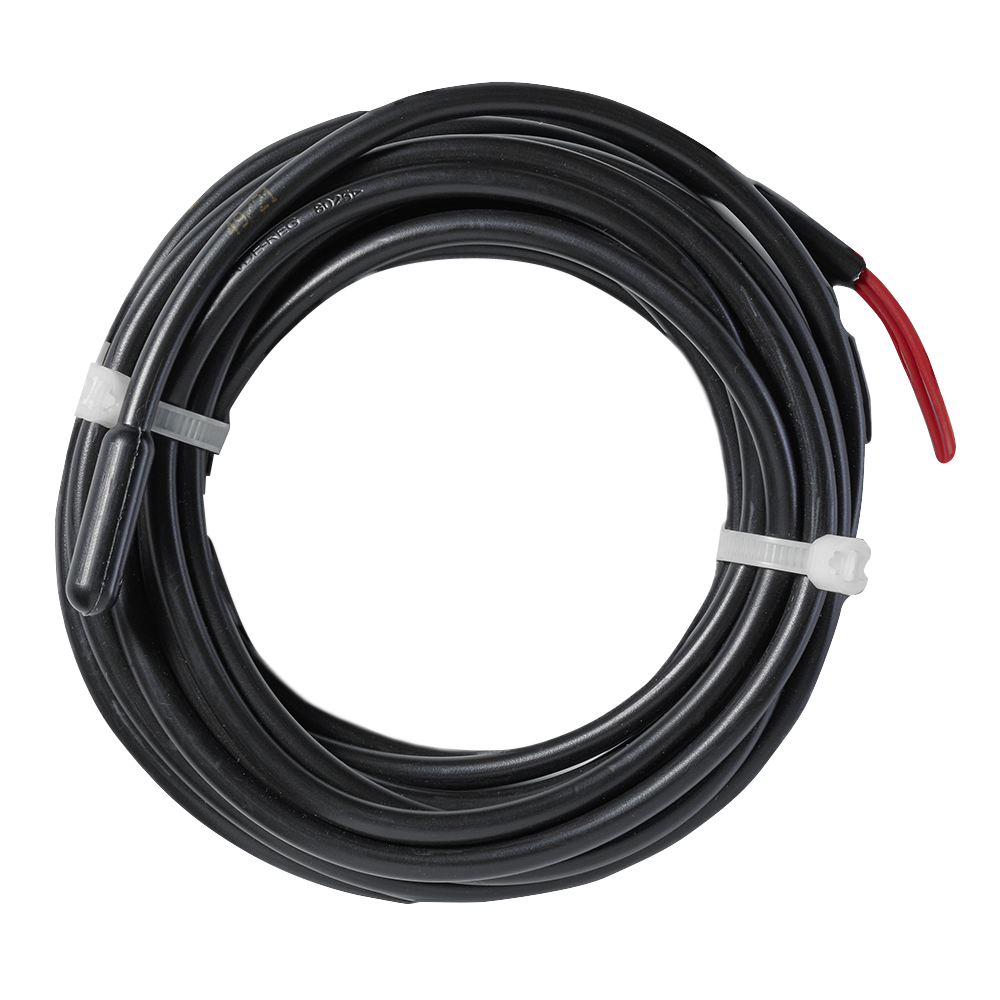

External sensor

FF NTC

for room thermostat ref.-no. 1790 RTR, TR D .. 1790 ..
spare part for floor thermostat ref.-no. FTR 231
The sensor cable can be connected using a bifilar cable with a cross section of 1.5 mm² that is suitable for mains voltage. When installed in a cable duct or near high voltage current cables, a shielded cable must be used.

Also suitable as external temperature sensor for the following KNX devices, ref.-no.:
.. 2178 TS .., .. 2178 ORTS .., .. 5292 D 1ST, .. 5294 D 1ST, 23066 REGHE, 23001 1S U, 23002 1S U, 39001 1S U, .. 459 D 1S .., 4000.. 1S E

Read less... Read more...

Degree of protection IP67 is ensured.

Information

Article number:	FF NTC
EAN/GTIN:	4011377206977

Read less... Read more...

Technical data

Dimensions (Ø x H):	7.8 x 28 mm
Cable length:	4 m (can be extended up to 50 m)
Degree of protection:	IP67

Read less... Read more...

Downloads

Show all downloads

Operating instructions	Select language Select language DE EN ES FI FR IT NL NO RU SE ZH
Tendering text	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	SG Select language Select language DE EN AE GB US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.164 KG
Length	117 MM
Height	93 MM
Width	93 MM
Carton
Packaging unit	1 pc.
Weight	0.164 KG
Length	117 MM
Height	93 MM
Width	93 MM

Read less... Read more...

Serves as spare part for

FTR 231

Floor thermostat (1-way NC contact)
