JUNG SCHUKO® sockets for interior spaces

SCHUKO® sockets are commonly used in Indonesia and Vietnam. High-quality contact springs inside the sockets ensure your safety in daily use. They reliably enclose the SCHUKO® plug and thus ensure that the protective earthing takes effect before the current flows.

Tested safety

Every new socket is tested multiple times during production for functionality and quality. Our high quality standards require SCHUKO® sockets to withstand twice as many repeated plug insertions as required by the standard. SCHUKO® sockets with the "Safety Plus" designation are equipped with an integrated shutter for increased safety.

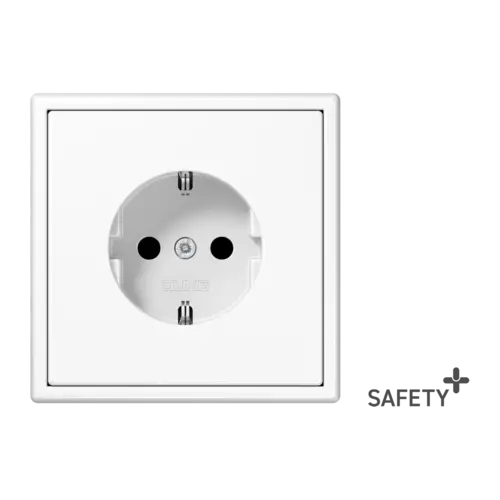

Safety Plus: SCHUKO® socket outlets with shutter in the LS 990 programme in white

Safety Plus: SCHUKO® socket with shutter

JUNG SCHUKO® sockets with enhanced contact protection (shutter) offer more safety. An internal locking mechanism, the shutter, reduces the risk of contact with conductive parts. The shutter is a fixed part of the socket and cannot be removed. Naturally, all JUNG SCHUKO® sockets are also VDE tested with the "Safety Plus" designation.

Go to catalogue

SCHUKO® socket outlet with integrated labelling field in the LS 990 range in white

SCHUKO® socket with inscription field

You can keep track with our inscribable sockets. The inscription field is protected by a transparent cover and is also available in a backlit version. For areas with particularly high hygiene requirements, we provide SCHUKO® sockets with spray-mist-protected labelling fields.

Go to catalogue

SCHUKO® sockets with RCD

In the bathroom, in the kitchen or in the covered swimming pool: The SCHUKO® socket with RCD provides protection when it matters. The integrated residual current device detects so-called residual currents and disconnects the monitored circuit from the rest of the power network within milliseconds. SCHUKO® sockets with RCD from JUNG are ideal for retrofitting in older buildings - particularly where there is no possibility for intervention in the sub-distribution.

Go to catalogue

SCHUKO® sockets for surface-mounted ranges

For increased demands on the electrical installation.

WG 800 with hinged lid, photographed from a slight angle

WG 800 | WG 600 | AP 600

Splash-proof and robust: our WG 800 and WG 600 surface-mounted ranges are intended for use in cellars and garages, attics and terraces. The robust plastic housing of the surface-mounted socket meets the IP44 standard, retains its protective function even at low temperatures and is predestined for use in protected outdoor areas. The AP 600 surface-mounted range is ideal for new installation and retrofitting in dry interiors: on concrete, wood or exposed masonry.

Learn more about our surface-mounted ranges

LS CUBE

LS CUBE is the surface-mounted version of our classic LS 990 switch. The cube-shaped range for installation in dry rooms enables surface-mounted installation of inserts for conventional and KNX-based applications. As a stylish element in an industrial design, LS CUBE is a striking eye-catcher – in rooms with loft character, on wood, exposed concrete, brick or natural stone walls.

More versions

JUNG SCHUKO® sockets are available in many different versions, you can find an overview of the entire portfolio in our online catalogue

Go to catalogue

SCHUKO® sockets with USB ports

The SCHUKO sockets with USB connection quickly recharge any smartphone.

The JUNG SCHUKO® sockets with USB ports swiftly recharge all batteries. The devices are available with the USB type-A and type-C sockets. Like all other SCHUKO® sockets, these are of course also "Made in Germany" and VDE-certified.

The SCHUKO® sockets with integrated USB ports enable space-saving electrical installation and provide various options for charging different devices.

Alongside the version with a single USB port, we also offer a SCHUKO® socket with two USB ports (type A and type C) including "Safety Plus". If several electrical loads are connected, the charging current of 3 ampere (15 watt) is divided equally into 1.5 ampere per USB port - the optimum 3-in-1 solution. The version with JUNG Quick Charge® provides electric power of 18 watt and recharges mobile devices in the shortest possible time.

SCHUKO® sockets with USB type A

Go to catalogue

SCHUKO® sockets with USB type C

Go to catalogue

SCHUKO® sockets with USB type A and type C

Go to catalogue

SCHUKO® socket with LED floor pilot light

SCHUKO® socket outlet with LED orientation light in LS 990 programme in white, application mounting in the dark

As the inventor of the SCHUKO® socket with pilot light, we have continuously optimised this concept. The result is an LED light integrated flush into the design cover and with a defined, downward shining light cone. The socket with pilot light is available in the JUNG switch ranges of the A and LS design ranges.

Go to catalogue

JUNG SCHUKO® socket: Good things made better

Optimised mounting and more safety. These are the main characteristics of the JUNG SCHUKO® socket. We have significantly increased the advantages for the electrician with this development.

The focus for the safety optimisation of the JUNG SCHUKO® socket is on the integration of the supporting frame, claws, claw screws and earthing bracket into the earth protection. This avoids leakage currents, voltage carry-over, etc. and thus creates more safety for the installer during flush mounting. Furthermore, the ribs in the base allow easy guiding of the cable material with damage to the cable during installation being prevented by the claw enclosure. The supporting frame of the socket consists of a zinc-magnesium alloy that has high corrosion protection. All SCHUKO® sockets are of course certified by VDE and are therefore absolutely safe. In addition, the JUNG socket also meets the strict Netherlands TNO standard.

SCHUKO® socket outlet insert, as well as frame and series in the LS 990 programme

1. Diagonal slots for individual mounting especially in Swiss wall boxes
2. Claw screws: single-thread, combi-head PZI for precise adjustment during installation
3. Cross hair marking / notch in the supporting frame simplifies the exact alignment for multiple combinations
4. Large release lever with low pressure forces for easy removal of the cable material
5. Keyholes for cavity wall and international device socket installation

1. Earthing rail integrates support ring, claws, earthing bracket and claw screws into the protective measure
2. The enclosure of the claws prevents damage to the cable
3. Easy insertion of the cables into the clamping cage with a firm hold at the same time
4. The guide ribs incorporated in the base allow reliable guidance of the cable

Safety Plus

In JUNG SCHUKO® sockets with the "Safety Plus" designation, the shutter provides additional safety. It is part of the cover of the socket and is intended to remain closed until a plug for the intended use is inserted. In this way, improper or erroneous use, such as inserting items other than plugs, can be prevented. As a result, the shutter provides enhanced contact protection in the best way possible and reduces the risk that people with conductive items come into contact with the socket and as a result possibly get an electric shock.

All sockets with the "Safety Plus" designation are equipped with an integrated shutter and, with further design measures, fulfil the more demanding, enhanced safety requirements of DIN standard VDE 0620:2021-02. This means they meet the current technological standards.
