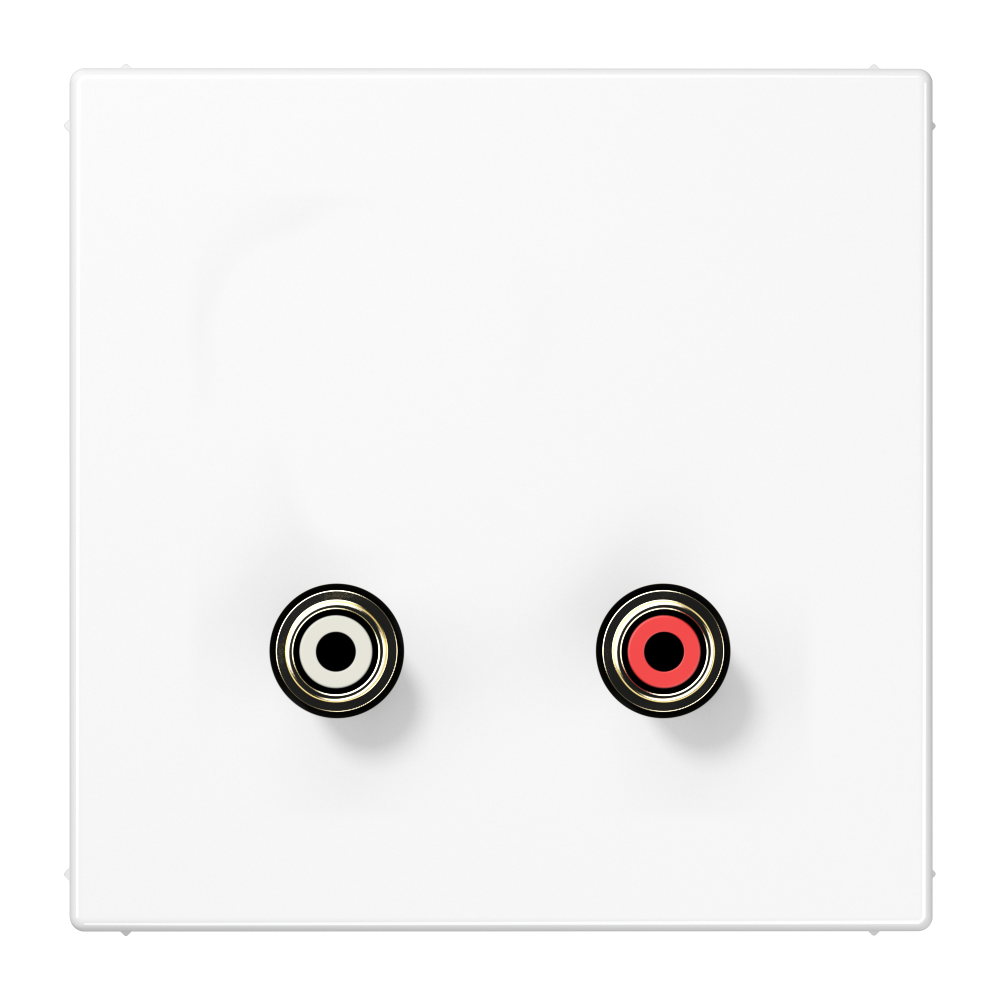

Cinch Audio (RCA), thermoplastic, LS range, white

MA LS 1021 WW

MA LS 1021 WW

(with supporting frame, screw fixing only)

Thermoplastic (breakproof) high-gloss

Spare part:
adapter 4 ref.-no.: MA 1000 AD 4

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Read less... Read more...

Rated voltage:	DC 50 V
Frequency range:	20 Hz ... 20 kHz
Contact resistance:	≤ 20 mΩ
Insulation resistance:	≥ 100 MΩ
Electric strength:	AC 500 V ~ (50/60 Hz) at 1 min 2 mA
Insertion and removal forces:	3 ... 25 N
Insertion/removal cycles:	≥ 1000
Terminal:	white (left) 180° red (right) 180°
Contact material:	gold-plated
Installation depth:	14 mm
Ambient temperature:	−5 ... +45 °C
Installation note:	Installation into deep wall box

Read less... Read more...

Downloads

Operating instructions	Select language Select language DE EN
Tendering text	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	SG Select language Select language DE EN AE GB US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
