JUNG HOME Puck binary input 2-gang, battery-powered
BT P B2 U B
Intended use
Product characteristics
- Connection of devices with floating contact (e.g. push-buttons or switches) to the binary inputs for triggering scenes, operating electrical loads, polling of statuses, etc.
- Wireless linking with JUNG HOME system devices
- Installation in flush box with dimensions according to DIN 49073
- Ceiling installation in the mini housing built-in adapter, ref.-no.: FM-EBG
Product characteristics
- Commissioning using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
- Inputs freely configurable as 2 independent buttons or as one rocker
- Free linking of the 2 binary inputs with JUNG HOME actuators (wireless)
- Multi-coloured status indicator and Prog button for commissioning
- Disabling the Prog button
- Battery status notification via LED and app
- Trigger the disabling function using binary inputs, e.g. lock-out protection with shutters and blinds, forced guidance, etc.
- Bluetooth® Mesh for fully encrypted wireless communication
- Can be updated using JUNG HOME app
Read less...
Read more...
new
Information
| Article number: | BT P B2 U B |
|---|---|
| EAN/GTIN: | 4011377360051 |
Read less...
Read more...
Technical data
| Ambient temperature: | −5 ... +45 °C |
| Storage temperature: | −5 ... +45 °C |
| Transport temperature: | −20 ... +70 °C |
| Relative humidity: | 20 ... 70 % (no condensation) |
| Protection class: | III |
| Length of cable set: | 25 cm |

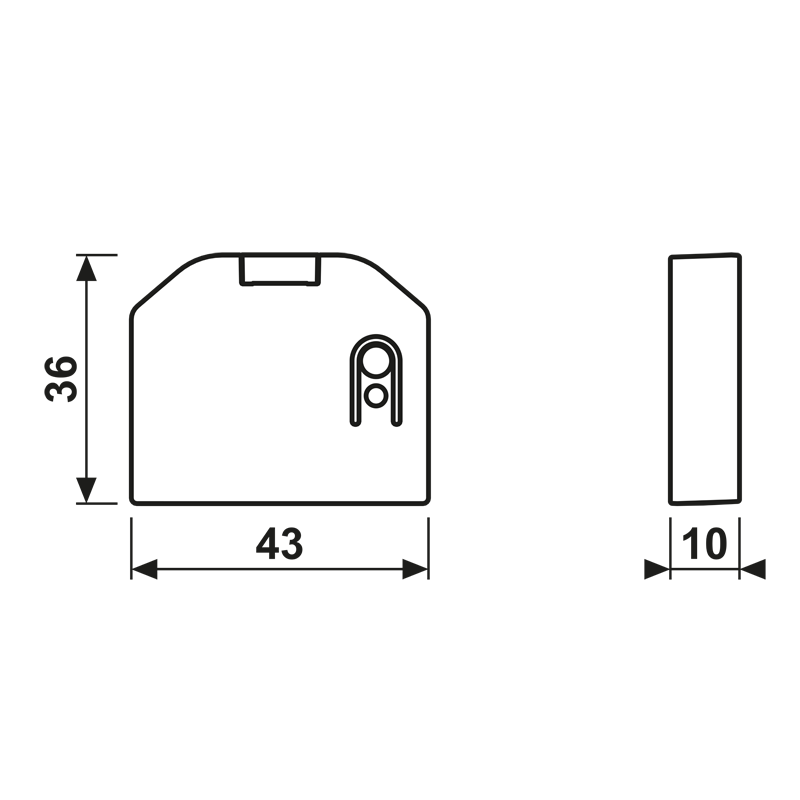

| Dimensions (W x H x D): | 43.3 x 35.9 x 10.2 mm |
| Installation depth: | 10.2 mm |
| Radio frequency: | 2402.0 ... 2480.0 MHz |
| Transmitting power: | max. 10 mW (class 1.5) |
| Transmission range | |
| Transmission range in buildings: | approx. 30 m |
| Battery type: | 1 x lithium CR 2450 Duracell (recommended) or CR 2450N |
| Battery life | up to 7 years |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Workbook |
Select language
|
| Tendering text | |
| EC Declaration of Conformity | |
| Product data sheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.052 KG |
| Length | 82 MM |
| Height | 45 MM |
| Width | 82 MM |
| Carton | |
| Packaging unit | 10 pc. |
| Weight | 0.618 KG |
| Length | 235 MM |
| Height | 92 MM |
| Width | 175 MM |
| Outer carton | |
| Packaging unit | 100 pc. |
| Weight | 6.42 KG |
| Length | 460 MM |
| Height | 245 MM |
| Width | 360 MM |
| Palette | |
| Packaging unit | 2000 pc. |
| Weight | 150.4 KG |
| Length | 1200 MM |
| Height | 1550 MM |
| Width | 800 MM |
