for cover kit 4-gang, ref.-no.: .. 404 TSA ..
for cover 4-gang with symbols, ref.-no.: .. 404 TSAP ..
including mounting plate, adhesive film and fastening screw
Adapter frames are included in delivery:
ref.-no. LS 4 AR for LS range (pre-mounted) and ref.-no. CD 4 AR for CD range.
AS / A ranges without adapter frame.
ETS product family: Push-button

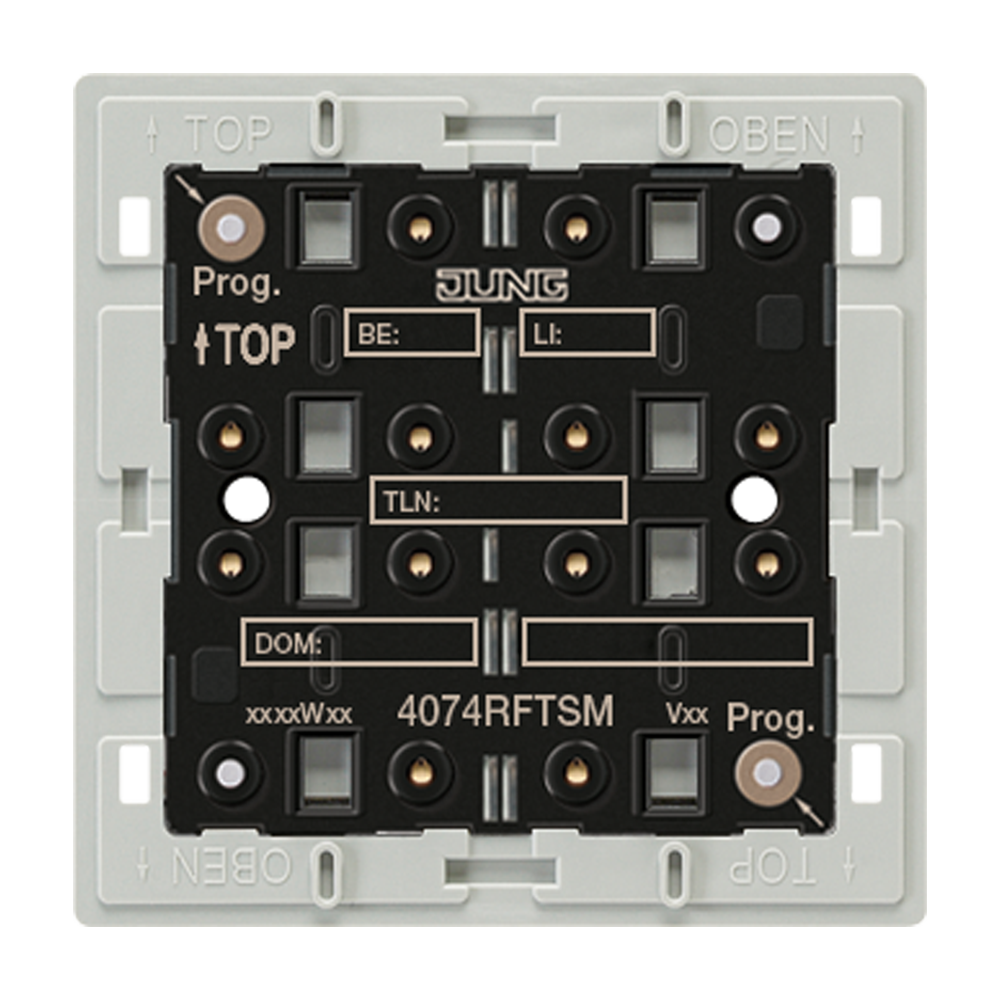

Product type: 4-gang push-button
4 red LEDs: actuator status
1 blue LED: transmission status
Intended use- Radio operation of loads, e.g. light on/off, dimming, Venetian blinds up/down, brightness values, calling up and saving light scenes
- Operation in cabled KNX systems via radio converter (ref.-no.: MK 100 RF)
- Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)
Product characteristics- Push-button functions switching, dimming, controlling blinds, value transmitter, calling up light scenes etc.
- Button pairs for button function or rocker function
- Status indication with LED
- Battery-powered device
- Project design and commissioning with ETS5 or a more recent version
- Cannot be combined with frames in FLAT DESIGN.
