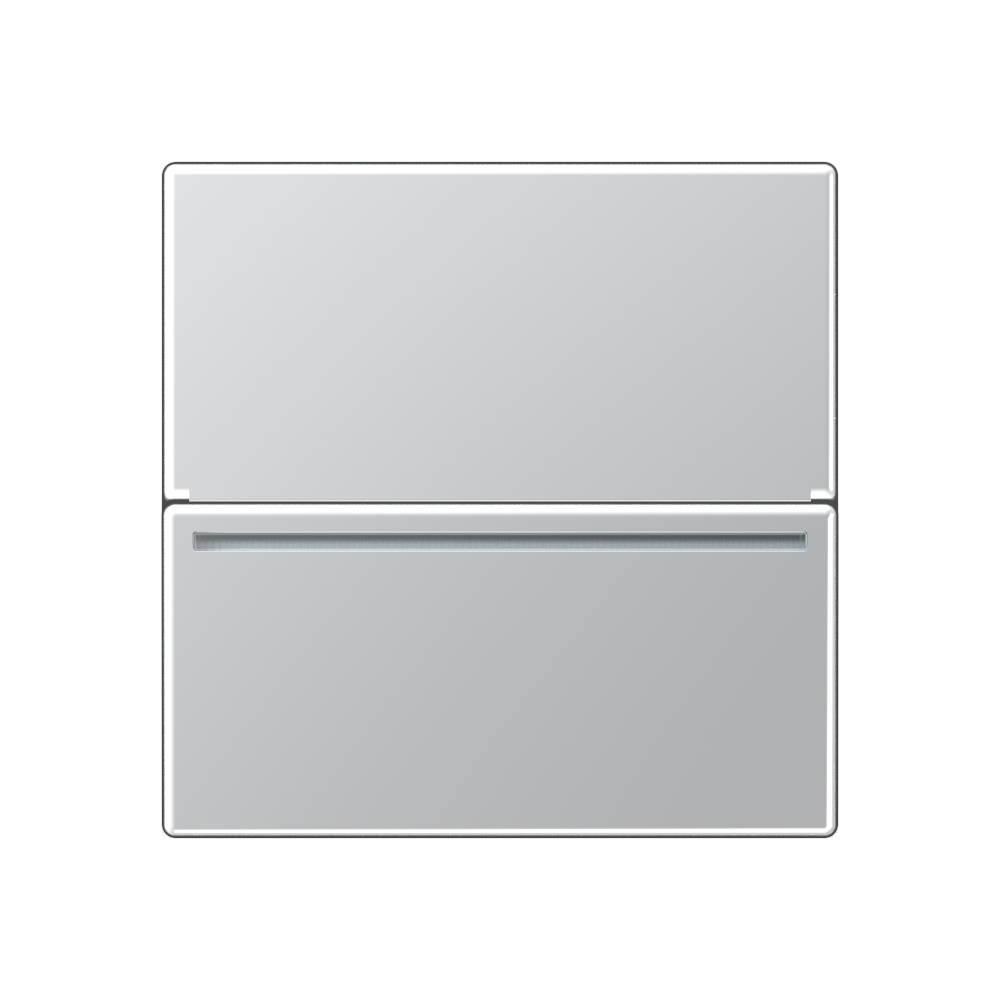

Key card holder RFID, thermoplastic lacquered, A range, aluminium

A CARD RFID AL

A CARD RFID AL

for energy saving unit ref.-no.: ESU 230-2

The key card holder RFID is used to keep the hotel card and to ensure a high level of safety and energy savings, since all possibly powered electrical loads are switched off with an adjustable delay after removing the hotel card. The key card holder RFID will be completed with the energy saving unit.
Customised adjustment of the lens colour/brightness and switch-off delay of the second relay are possible before ordering. Subsequent changes are possible with configuration card (ref.-no. CONFIG CARD) which can be ordered separately.
For customisation of the key card holder, please visit the following website: jung.group/hotelcard
The intended use and the product characteristics refer to the complete device, consisting of energy saving unit and key card holder RFID.

Product characteristics

Operation with RFID cards according to RFID standard ISO/IEC 14443 and ISO/IEC 15693
2 1-way NO contacts, one of them with configurable switch-off delay
Status indication with RGB lens
Lens is dimming down 30 s after inserting the card
Switch-off delay is signalled by RGB lens after removing the card

Thermoplastic (breakproof) lacquered

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Article number:	A CARD RFID AL
EAN/GTIN:	4011377164529
Colour:	aluminium

Read less... Read more...

Downloads

Show all downloads

Operating instructions	Select language Select language DE EN ES FR IT NL NO PT RU ZH
Tendering text	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	SG Select language Select language DE EN AE GB US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.032 KG
Length	60 MM
Height	32 MM
Width	58 MM
Carton
Packaging unit	1 pc.
Weight	0.064 KG
Length	84 MM
Height	72 MM
Width	84 MM
Outer carton
Packaging unit	10 pc.
Weight	0.766 KG
Length	360 MM
Height	90 MM
Width	175 MM
