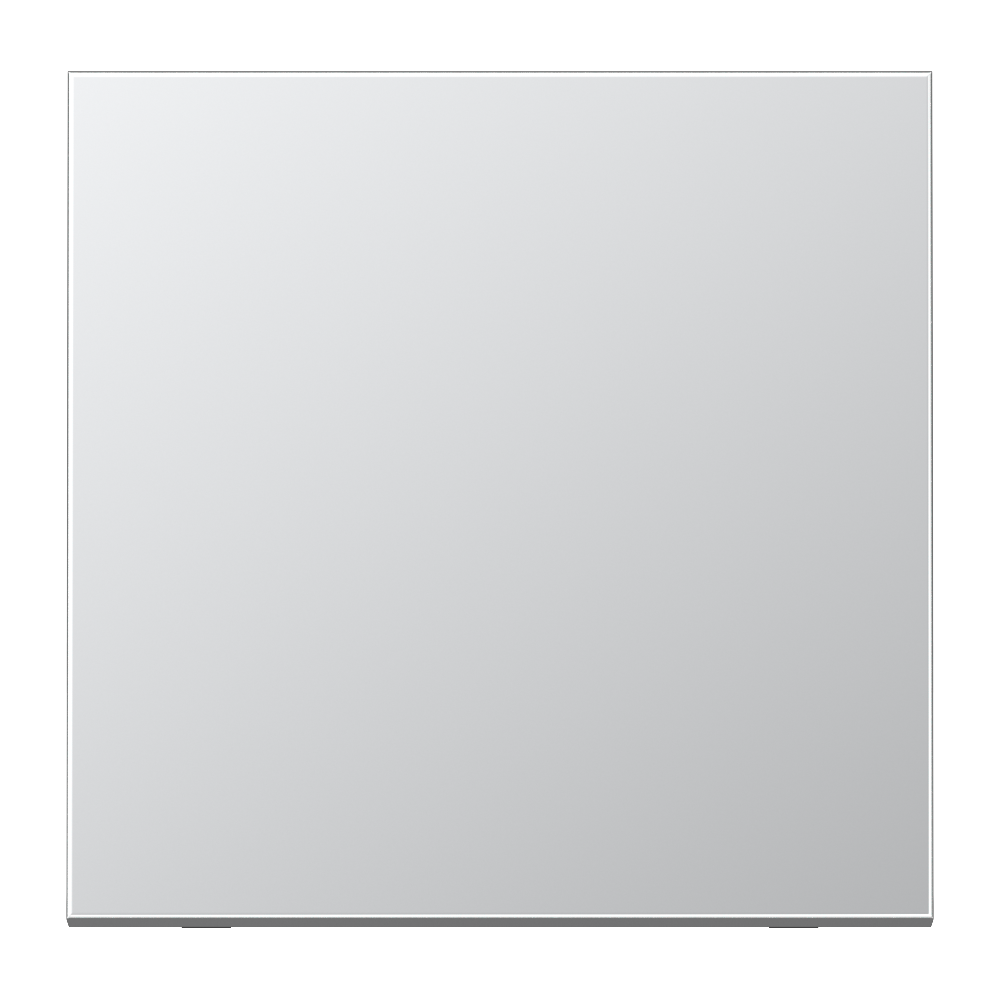

Rocker 1-gang, LS range, aluminium

AL 2990

Rocker 1-gang, aluminium
arrow-slider
arrow-slider
  • Rocker 1-gang, aluminium
arrow-left-slim
arrow-right-slim
  • Rocker 1-gang, aluminium
AL 2990
arrow-left-slim
arrow-right-slim
  • Rocker 1-gang, aluminium
for switch ref.-no.: 501 U, 502 U, 503 U, 506 U, 507 U, 501-20 U, 506-20 U, 507-20 U
for push-button ref.-no.: 531 U, 532 U, 533 U, 533-2 U

Metal versions

Spare part:
holder plate ref.-no.: CD 90 HP
For illuminated inserts use rocker with lens ref.-no.: ..KO...

Read less... Read more...
Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.
Individual colour printing possible
Individual laser engraving possible
More articles

Information

Article number: AL 2990
EAN/GTIN: 4011377182158
Colour: aluminium
Material: aluminium AlMg1
Width: 70 mm
Height: 70 mm
Read less... Read more...
Downloads
Show all downloads
Tendering text
SG
Select language
Select language
EN
DE
AT
AE
GB
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Product data sheet
SG
Select language
Select language
DE
AT
EN
AE
GB
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.045 KG
Length 71 MM
Height 23 MM
Width 71 MM
Carton
Packaging unit 10 pc.
Weight 0.45 KG
Length 212 MM
Height 94 MM
Width 96 MM
Outer carton
Packaging unit 100 pc.
Weight 4.657 KG
Length 470 MM
Height 225 MM
Width 190 MM
Palette
Packaging unit 6000 pc.
Weight 310.39 KG
Length 1200 MM
Height 1550 MM
Width 800 MM
Read less... Read more...

Inserts

All products
506 U

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~
1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~
506-20 U

1-gang switch (insert), 1-pole, 2-way, 20 AX 250 V ~
1-gang switch (insert), 1-pole, 2-way, 20 AX 250 V ~
507 U

1-gang switch (insert), intermediate, 10 AX 250 V ~
1-gang switch (insert), intermediate, 10 AX 250 V ~
507-20 U

1-gang switch (insert), intermediate, 20 AX 250 V ~
1-gang switch (insert), intermediate, 20 AX 250 V ~

Inserts

506 U

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~
1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~
506-20 U

1-gang switch (insert), 1-pole, 2-way, 20 AX 250 V ~
1-gang switch (insert), 1-pole, 2-way, 20 AX 250 V ~
507 U

1-gang switch (insert), intermediate, 10 AX 250 V ~
1-gang switch (insert), intermediate, 10 AX 250 V ~
507-20 U

1-gang switch (insert), intermediate, 20 AX 250 V ~
1-gang switch (insert), intermediate, 20 AX 250 V ~
502 U

1-gang switch (insert), 2-pole, 1-way, 10 AX 250 V ~
1-gang switch (insert), 2-pole, 1-way, 10 AX 250 V ~
503 U

1-gang switch (insert), 3-pole, 1-way, 16 AX 400 V ~
1-gang switch (insert), 3-pole, 1-way, 16 AX 400 V ~
531 U

1-gang push-button, 1-pole, 1-way NO contact, 10 A 250 V ~
1-gang push-button, 1-pole, 1-way NO contact, 10 A 250 V ~
533 U

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A 250 V ~
1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A 250 V ~
532 U

1-gang push-button, 2-pole, 1-way NO contact, 10 A 250 V ~
1-gang push-button, 2-pole, 1-way NO contact, 10 A 250 V ~
533-2 U

1-gang push-button, 2-pole, 2-way, 10 A 250 V ~
1-gang push-button, 2-pole, 2-way, 10 A 250 V ~
501 U

1-gang switch (insert), 1-pole, 1-way, 10 AX 250 V ~
1-gang switch (insert), 1-pole, 1-way, 10 AX 250 V ~
501-20 U

1-gang switch (insert), 1-pole, 1-way, 20 AX 250 V ~
1-gang switch (insert), 1-pole, 1-way, 20 AX 250 V ~

Frames

AL 2981

Frame 1-gang, aluminium
Frame 1-gang, aluminium
LSZ AL 981 BF

Frame 1-gang, aluminium
Frame 1-gang, aluminium
ALD 2981

Frame 1-gang, aluminium
Frame 1-gang, aluminium
AL 2581 A-L

Surface cap 1-gang, aluminium
Surface cap 1-gang, aluminium
