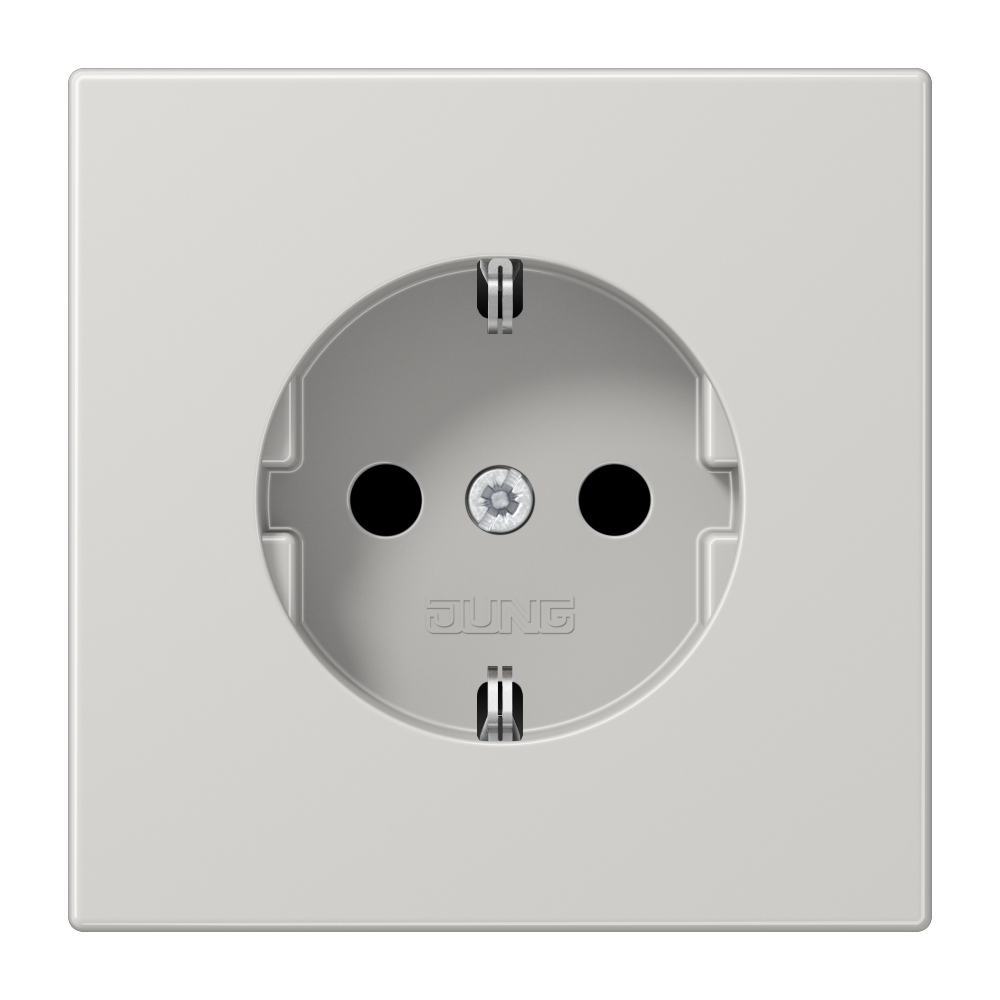

SCHUKO® socket, 16 A 250 V ~, Safety Plus, duroplastic, LS range, light grey

LS 1520 KI LG

SCHUKO® socket, Safety Plus, duroplastic, light grey

LS 1520 KI LG

with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Duroplastic (scratch-proof) glossy

Read less... Read more...

Individual colour printing possible

Article number:	LS 1520 KI LG
EAN/GTIN:	4011377063044
Colour:	light grey
Material:	duroplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	SG Select language Select language DE AT EN AE GB US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.092 KG
Length	70 MM
Height	40 MM
Width	70 MM
Carton
Packaging unit	10 pc.
Weight	1.021 KG
Length	290 MM
Height	80 MM
Width	180 MM
Outer carton
Packaging unit	200 pc.
Weight	21.135 KG
Length	575 MM
Height	360 MM
Width	395 MM
Palette
Packaging unit	3200 pc.
Weight	360.16 KG
Length	1200 MM
Height	1620 MM
Width	800 MM
