SCHUKO® socket, 16 A, with USB charger (JUNG Quick Charge®), 1 x type C, Safety Plus, LS range, classic brass

ME 1520-18 C C

SCHUKO® socket with USB charger (JUNG Quick Charge®), Safety Plus, classic brass

ME 1520-18 C C

with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type C
with quick charge function (JUNG Quick Charge^®)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

Spare part:

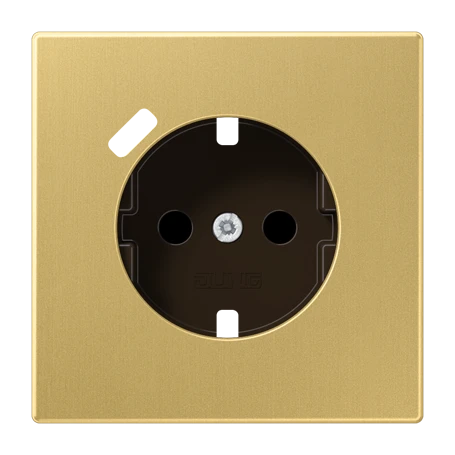

Centre plate ref.-no.: .. 1520-18 C PL .. in the LS range

Metal versions

Accessories:
Frame 28 mm structure height ref.-no.: LS 98.. HBF ..

Read less... Read more...

Individual colour printing possible

Article number:	ME 1520-18 C C
EAN/GTIN:	4011377214033
Colour:	classic brass
Material:	brass
Type:	1 x type C
Width:	70 mm
Height:	70 mm

Read less... Read more...

Technical data

Rated voltage:	AC 220 ... 250 V ~
Mains frequency:	50/60 Hz
Rated current:	16 A
Output voltage USB:	DC 9 V / DC 5 V
Output current USB:	2 A / 3 A
Stand-by power:	≤ 25 mW
Ambient temperature:	+5 ... +35 °C
Storage/transport temperature:	−20 ... +70 °C
Connection mode:	screwless terminals
single wire:	1.5 ... 2.5 mm²
stranded without ferrule:	1.5 ... 2.5 mm²

Read less... Read more...

Downloads

Show all downloads

Operating instructions	Select language Select language DE EN ES FR NL NO
Tendering text	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	SG Select language Select language DE AT EN AE GB US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
