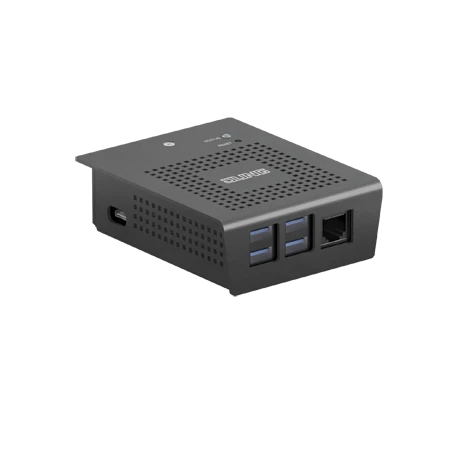

Smart Visu Server, with Europlug

SV-SERVER2

including plug-in power supply

Intended use

Visualisation and operation of KNX systems via devices with HTML5 browser or app (iOS, Android), e.g. Smart Control (ref.-no.: SC 5 SW, SC 0081 U), smartphone, tablet, laptop, PC, etc.
Visualisation and operation of Philips Hue systems
Operation in local IP networks that support DHCP (Dynamic Host Configuration Protocol), or with static IP address (IPv4)
Operation in interiors

Product characteristics

Web visualisation of KNX system for status indication and operation (SV-Home)
Access from max. 10 different clients to SV-Home recommended
Integrated web-based commissioning tool (SV-Control)
Easy to create a pre-configured user interface, optimised for domestic applications and small commercial facilities
Graphical control elements: symbols can be selected from supplied libraries
Import of group addresses (three-stage) via OPC import
The ETS keyring is required for a KNX Secure connection
Manual input of group addresses possible
KNX special functions, e.g. scenes, sequences, central function
32 areas
320 dynamic functions (max. 1600 data points)
32 action groups
320 configurable actions (max. 32 functions per action)
- Customised
- Switching times
- Status logic
- Depending on events
- Astro
Creation of up to 24 users with different roles and rights
Storage of data (e.g. temperature values) and creation of diagrams (display of diagrams not possible with SC 5 SW)
Connection to KNX bus via interfaces (ref.-no. IPR 300 SREG, IPS 300 SREG, 20320 1S IPS R, 2131 USBS REG, 2131 USBS), not included
Connection to JUNG HOME via JUNG HOME gateway (ref.-no.: BT S GATEWAY)
Integration of Philips Hue systems in the KNX installation
Connection to Philips Hue via Philips Hue Bridge
Integration of SONOS loudspeakers in the KNX installation
Integration of SONORO Smart Home loudspeakers in the KNX installation
Integration of Amazon Alexa voice control via myJUNG account
Integration of Google Home voice control via myJUNG account
Integration of Samsung SmartThings via myJUNG account
Secure remote access via myJUNG account (SV-SERVER-L necessary)
Secure remote sharing with further myJUNG accounts
Access to IP cameras via RTSP
Control of IP cameras via ONVIF (profile S)
Motion detection via ONVIF (profile T)
Update and upgrade compatible

Accessories:
Mounting set ref.-no.: SV-SERVER2-MS
Remote access licence ref.-no.: SV-SERVER-L

Read less... Read more...

Article number:	SV-SERVER2
EAN/GTIN:	4011377322530
Version:	with Europlug

Read less... Read more...

Technical data

Rated voltage:	DC 5 V SELV
Power consumption:	typical 3 W, max. 10 W
Ambient temperature:	0 ... +40 °C
Storage/transport temperature:	−25 ... +70 °C
Terminals
Power supply:	USB type C
LAN:	RJ45 (10/100/1000 Mbit/s), shielded cable with Cat 5 or higher required
USB:	2 x USB 2.0 Host 2 x USB 3.0 Host
Dimensions (L x W x H)
without adapter:	98 x 80 x 32 mm
Plug-in power supply
Primary voltage:	AC 100 ... 240 V ~
Mains frequency:	50/60 Hz
Rated current:	max. 3 A
Secondary voltage:	DC 5 V SELV
Protection class:	II
Length of connected cable:	1.5 m

Read less... Read more...
