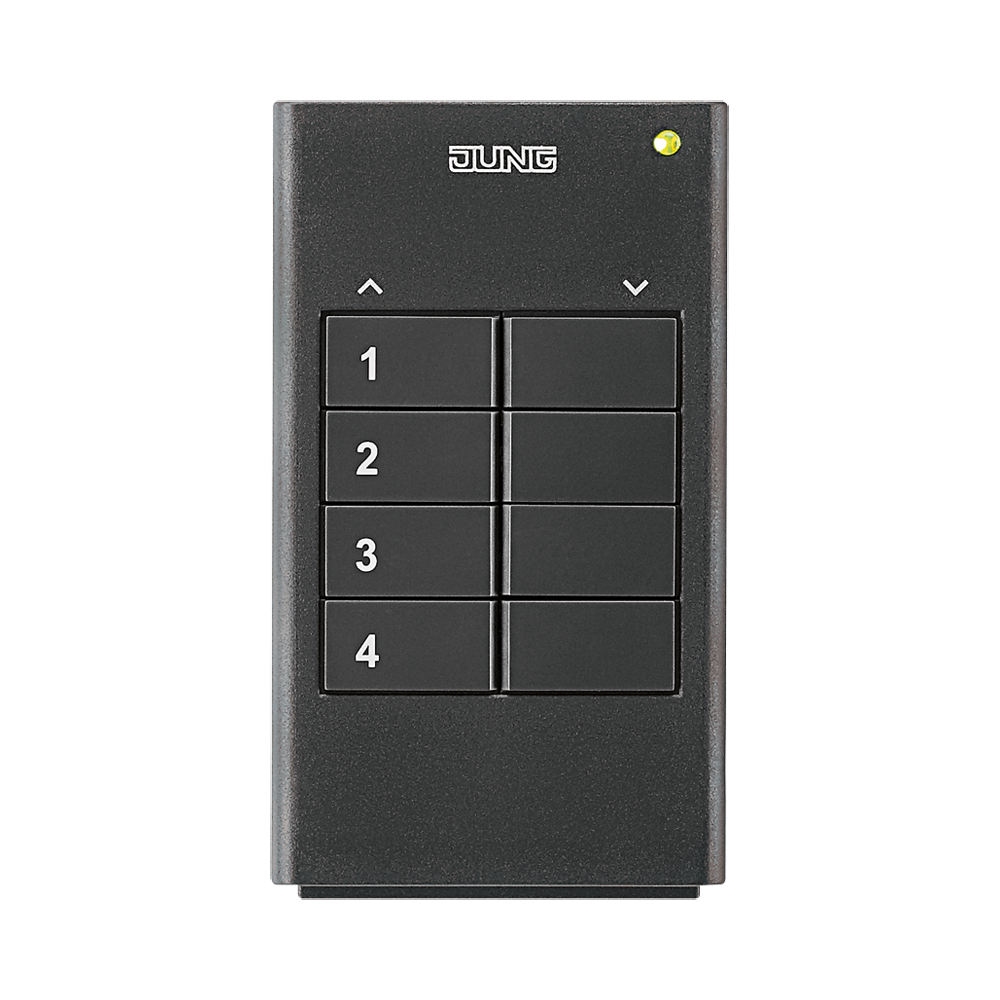

eNet radio hand-held transmitter, anthracite
FM HS 4
4-gang
Intended use
Product characteristics
Can be set with eNet server:
Intended use
- Hand-held transmitter for radio transmission of switching, dimming, blind movement and scene commands
- Operation with radio actuators from the eNet system
Product characteristics
- Two adjacent buttons each belong to one channel
- Status indication with LED
- Switch-on brightness of dimmer actuators can be saved
- Battery-powered device
- Scenes, radio hand-held transmitter, 4x: All Off, seven individual scenes
- Signalling of transmission errors can be switched off
Can be set with eNet server:
- Scene All On
- Operating locks
- Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
- Update of the device software
- Reading of error memory
Read less...
Read more...
Information
| Article number: | FM HS 4 |
|---|---|
| EAN/GTIN: | 4011377086647 |
| Colour: | anthracite |
Read less...
Read more...
Technical data
| Rated voltage: | DC 3 V |
| Battery type: | 1 x lithium CR 2450N (included) |
| Ambient temperature: | −5 ... +45 °C |
| Dimensions (L x W x H): | 93 x 53 x 15.5 mm |
| Radio frequency: | 868.0 ... 868.6 MHz |
| Transmitting power: | max. 20 mW |
| Transmission range in free field: | typical 100 m |
| Receiver category: | 2 |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Handbuch | |
| Tendering text | |
| EC Declaration of Conformity | |
| Product data sheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.092 KG |
| Length | 96 MM |
| Height | 42 MM |
| Width | 76 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.092 KG |
| Length | 96 MM |
| Height | 42 MM |
| Width | 76 MM |
