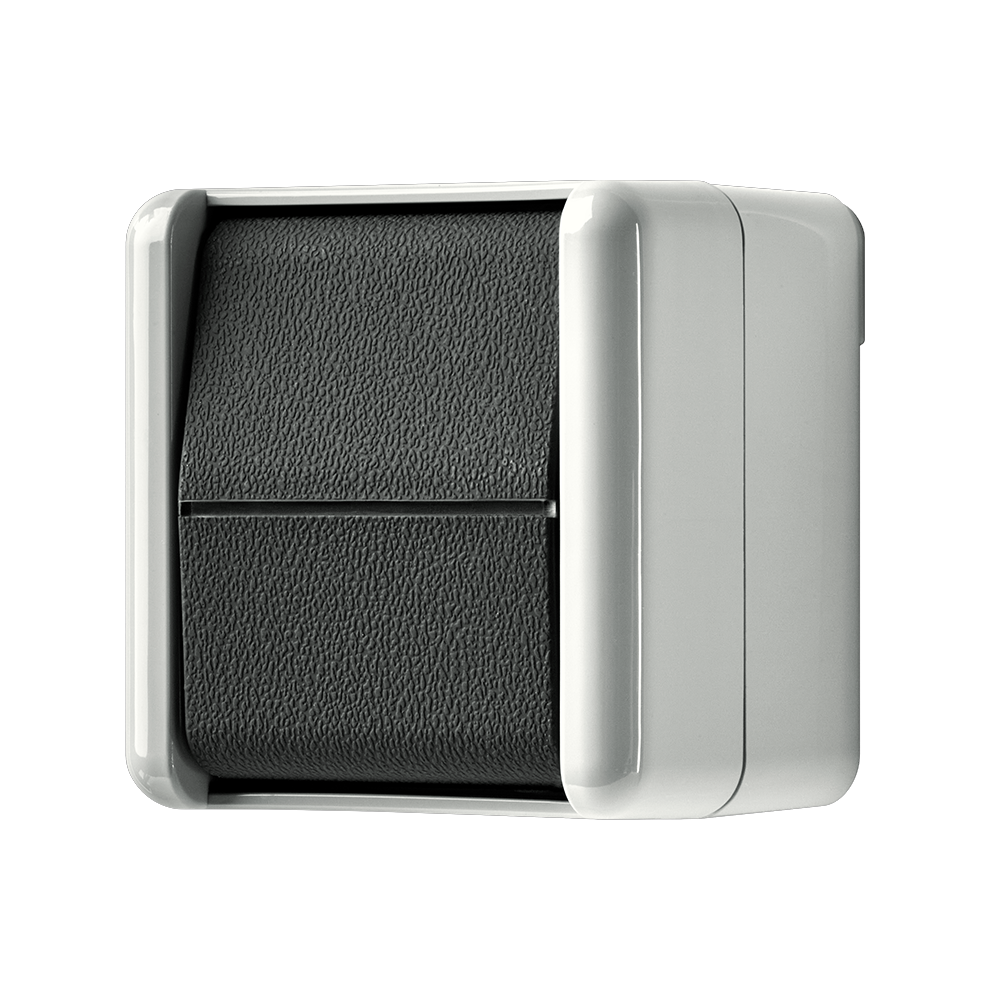

1-gang switch, 1-pole, 2-way, 10 AX 250 V ~, IP 44, WG 800

806 W

1-gang switch, 1-pole, 2-way, 10 AX, 250 V ~, grey

806 W

with screwless terminals for rigid wires up to 2.5 mm²

Switch can be illuminated in OFF-position with lamp ref.-no. 90/95 (230 V), 96-.. (low voltage), or LED lamp ref.-no. 90-LED.. (230 V) or 961248 LED.. (low voltage).

Read less... Read more...

Degree of protection IP44 is ensured.

Article number:	806 W
EAN/GTIN:	4011377655607
Version:	1-pole, 2-way
Power SBL (self-ballasted lamps):	max. 100 W

Read less... Read more...

Downloads

Show all downloads

Tendering text	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	SG Select language Select language DE EN AE GB US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
Datenblatt	Select language Select language DE EN ES FR NL

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.13 KG
Length	75 MM
Height	60 MM
Width	75 MM
Carton
Packaging unit	10 pc.
Weight	1.408 KG
Length	330 MM
Height	90 MM
Width	170 MM
Outer carton
Packaging unit	100 pc.
Weight	15.263 KG
Length	435 MM
Height	335 MM
Width	335 MM
Palette
Packaging unit	1000 pc.
Weight	174.63 KG
Length	1200 MM
Height	700 MM
Width	800 MM
