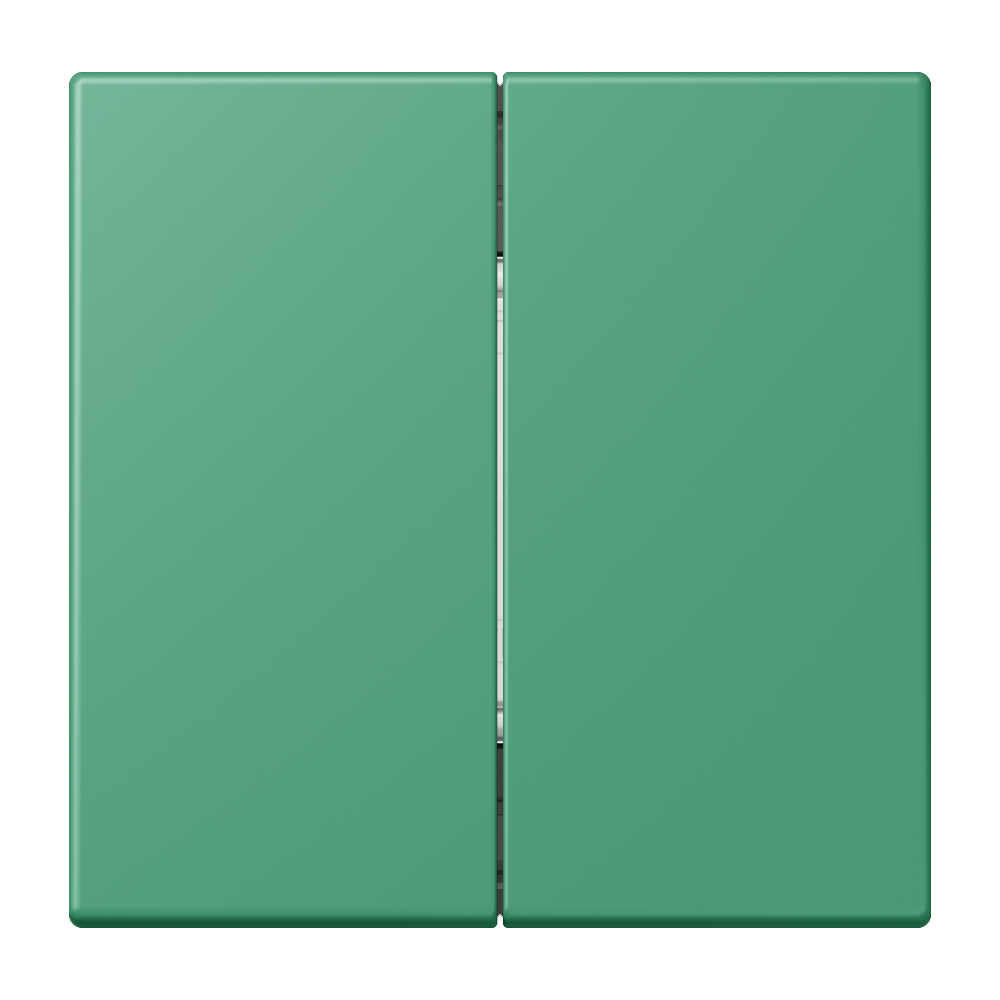

Bluetooth® Low Energy radio transmitter, 4-channel, thermoplastic lacquered, LS range, vert 59 (4320G)

BLE LC 995 250

BLE LC 995 250

4-channel
including mounting plate, adhesive film and retaining screw

Smart switch for wireless device control using wireless standard Bluetooth^® Low Energy (BLE)
For switching, dimming and controlling individual light scenes
Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)
Battery-free device without external power supply
Transmitting energy is generated from mechanical energy of actuation (energy harvesting)
Encrypted transmission with AES-128 (CBC mode) and sequence counter
Compatible with these wireless Bluetooth^® systems: Casambi, XICATO Controls, Häfele Connect, WiSilica, Wirepas, Blu2Light (Vossloh Schwabe), Aruba, Fulham, Helvar
Configuration interface: NFC Forum Type 2 Tag (ISO/IEC 14443 Part 2 + 3)
Automatic range extension (depending on the system) via BT Mesh devices connected to the mains

matt lacquered

Read less... Read more...

Individual colour printing possible

Read less... Read more...

Radio frequency:	2.402 ... 2.480 GHz
Transmission range
in free field:	up to 75 m
in buildings:	approx. 15 m
Transmitting power:	4 dBm / 2.5 mW
Ambient temperature:	−5 ... +45 °C
Storage/transport temperature:	−25 ... +65 °C
Atmospheric humidity:	0 ... 95 % (no condensation)

Read less... Read more...

Downloads

Operating instructions	Select language Select language DE EN ES FI FR NL
Tendering text	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	SG Select language Select language DE EN AE GB US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
