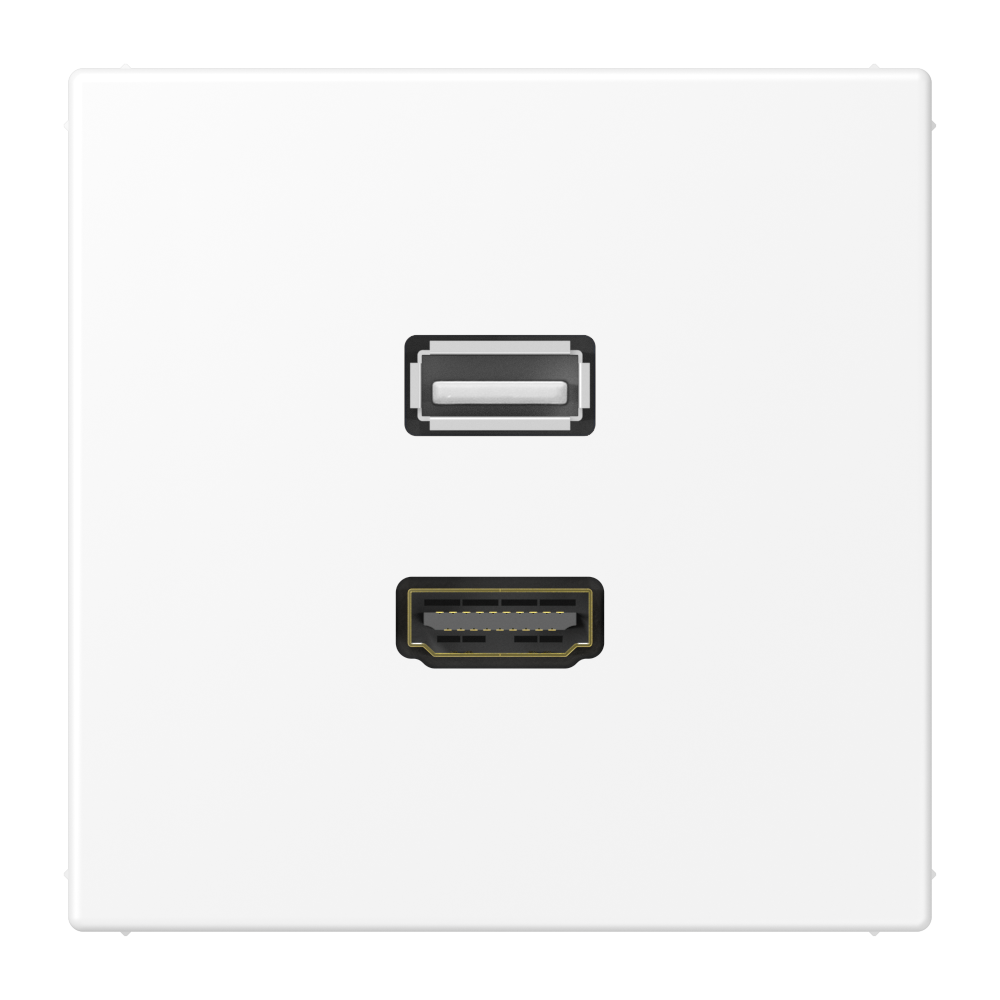

HDMI / USB 2.0, thermoplastic lacquered, LS range, matt snow white

MA LS 1163 WWM

MA LS 1163 WWM

(with supporting frame, screw fixing only)

Consider bending radius and various plug types. Ensure sufficient installation space.

matt lacquered

Spare part:
adapter 3 ref.-no.: MA 1000 AD 3

Read less... Read more...

Individual colour printing possible

Article number:	MA LS 1163 WWM
EAN/GTIN:	4011377203525
Colour:	matt snow white
Material:	thermoplastic lacquered
Installation depth:	25 mm
Installation depth:	28 mm

Read less... Read more...

Technical data

Technical data HDMI
Standard:	HDMI 2.0a
Video formats:	4K @ 50/60 Hz, Full HD @ 48 Hz 3D, HDR Video
Terminal:	HDMI™ type A, 180°
Contact material:	gold-plated
Installation depth:	25 mm
Ambient temperature:	−5 ... +45 °C
Installation note:	Consider bending radius and various plug types. Ensure sufficient installation space.
Technical data USB 2.0
Standard:	2.0 High Speed
Terminal:	Type A, 180°
Installation depth:	28 mm
Ambient temperature:	−5 ... +45 °C
Installation note:	Consider bending radius and various plug types. Ensure sufficient installation space.
Technical data USB 2.0
Technical data USB 3.0

Read less... Read more...

Downloads

Show all downloads

Operating instructions	Select language Select language DE EN
Tendering text	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	SG Select language Select language DE AT EN AE GB US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
