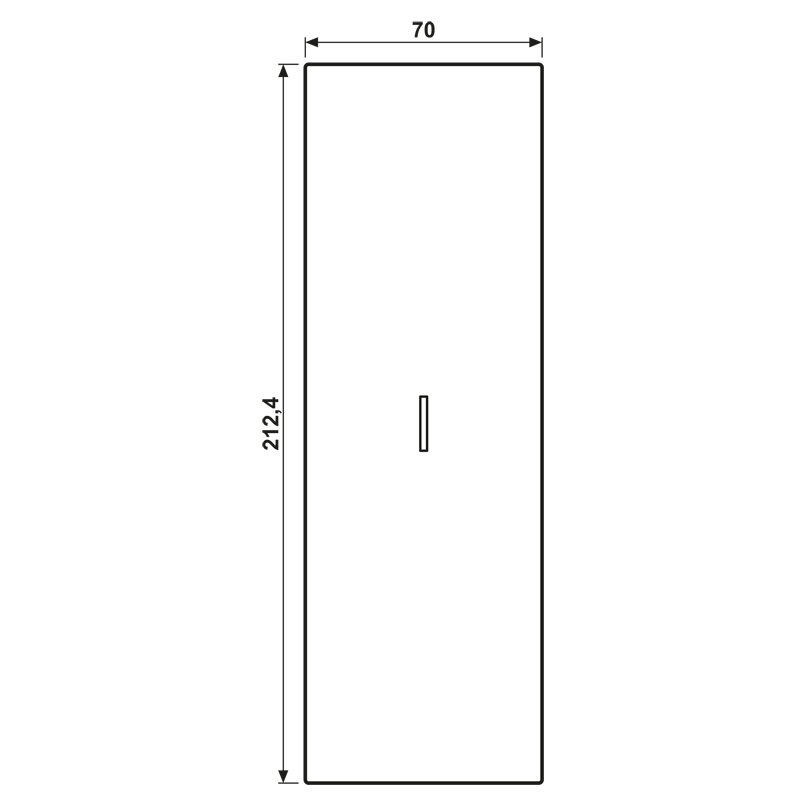

Oversize rocker (70 x 212.4 mm), with lens, LS range, stainless steel, vertical and horizontal installation

ES 2993 KO5

Oversize rocker (70 x 212.4 mm), with lens, stainless steel

ES 2993 KO5

for switch with indicator light ref.-no.: 502 KOU, 503 KOU, 506 KOU, 501-20 KOU, 502-20 KOU, 506-20 KOU
for push-button ref.-no.: 531 U, 533 U, 533-2 U, 534 U
with insert and design frame suitable for automatic doors (flush-mounting with ref.: LS 983 WW, ES 2983; surface mounting with ref: LS 583 A WW, ES 2583 A-L)

Protection level IP44 only possible with 3-gang frame!
Inscription on request
Installation note: No plaster compensation possible. Insert must be mounted flush with the wall. Supporting frame must be on top of wallpaper.

Spare part:
holder plate ref.-no.: ES 2993 HP

Read less... Read more...

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Individual laser engraving possible

Article number:	ES 2993 KO5
EAN/GTIN:	4011377065598
Colour:	stainless steel
Material:	stainless steel 1.4303 X4 CrNi 18-12

Read less... Read more...

Downloads

Show all downloads

Tendering text	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	SG Select language Select language DE EN AE GB US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
