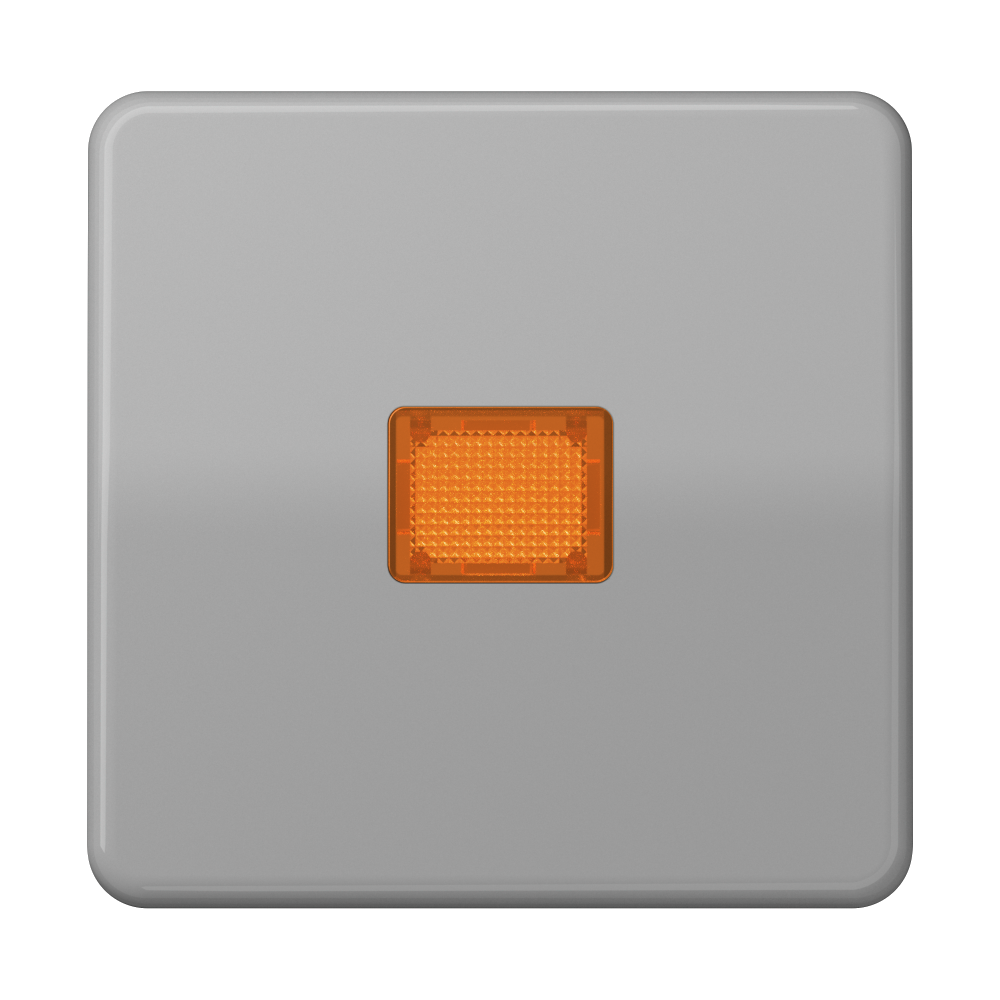

Rocker 1-gang, mit Lichtaustrittsfenster, duroplastic, CD range, grey

CD 590 KO GR

Rocker 1-gang, mit Lichtaustrittsfenster, grey

CD 590 KO GR

for switch with indicator light ref.-no.: 502 KOU, 503 KOU, 506 KOU, 501-20 KOU, 502-20 KOU, 506-20 KOU
for push-button ref.-no.: 531 U, 533 U, 533-2 U, 534 U
with orange lens (ref.-no.: 33 O), can be replaced with symbols ref.-no. 33..

Duroplastic (scratch-proof) glossy

Spare part:
holder plate ref.-no.: CD 90 HP
for metal versions ref.-no.: CD 90 MHP

Read less... Read more...

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Individual colour printing possible

More articles

Information

Article number:	CD 590 KO GR
EAN/GTIN:	4011377064904
Colour:	grey
Material:	duroplastic
Width:	67 mm
Height:	67 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	SG Select language Select language DE AT EN AE GB US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.035 KG
Length	68 MM
Height	24 MM
Width	68 MM
Carton
Packaging unit	10 pc.
Weight	0.35 KG
Length	210 MM
Height	94 MM
Width	96 MM

Read less... Read more...

Inserts

1-gang switch (insert) with indicator light, 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 20 AX, 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 20 AX, 250 V ~

Inserts

1-gang switch (insert) with indicator light, 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 20 AX, 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 20 AX, 250 V ~

1-gang switch (insert) with indicator light, 3-pole, 1-way, 16 AX, 400 V ~

1-gang switch (insert) with indicator light, 3-pole, 1-way, 16 AX, 400 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 1-pole, 1-way NO contact with separate contacts for indicator light, 10 A, 250 V ~

1-gang push-button, 1-pole, 1-way NO contact with separate contacts for indicator light, 10 A, 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A, 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A, 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 1-way, 20 AX, 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 1-way, 20 AX, 250 V ~

Frames

Frame 1-gang, grey

Frame 1-gang, grey

Surface cap 1-gang, grey

Surface cap 1-gang, grey

Additional items

Lens, opaque, symbol "door", white

Lens, opaque, symbol "door", white

Lens, opaque, symbol "bell", white

Lens, opaque, symbol "bell", white

Lens, opaque, symbol "light", white

Lens, opaque, symbol "light", white

Additional items

Lens, opaque, symbol "door", white

Lens, opaque, symbol "door", white

Lens, opaque, symbol "bell", white

Lens, opaque, symbol "bell", white

Lens, opaque, symbol "light", white

Lens, opaque, symbol "light", white

Lens, opaque, symbol "door", ivory

Lens, opaque, symbol "door", ivory

Lens, opaque, symbol "light", ivory

Lens, opaque, symbol "light", ivory

Lens, opaque, symbol "bell", ivory

Lens, opaque, symbol "bell", ivory

Lens, translucent, green

Lens, translucent, green

Lens, translucent, orange

Lens, translucent, orange

Lens, translucent, red

Lens, translucent, red

Lens, translucent, transparent

Lens, translucent, transparent
