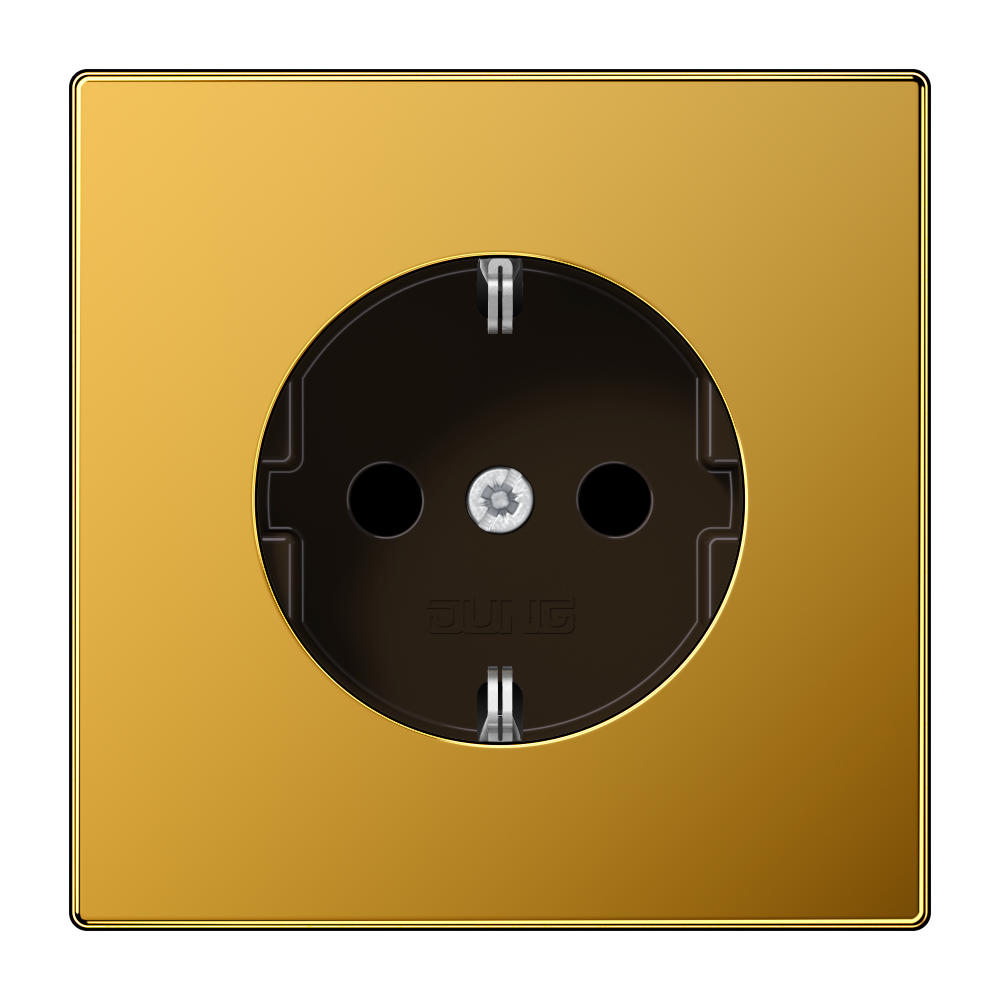

SCHUKO® socket, 16 A 250 V ~, Safety Plus, LS range, gold-plated

LS 1520 KI GGO

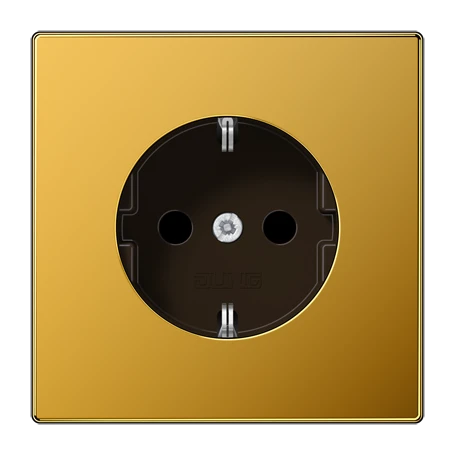

SCHUKO® socket, Safety Plus, gold-plated

LS 1520 KI GGO

with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

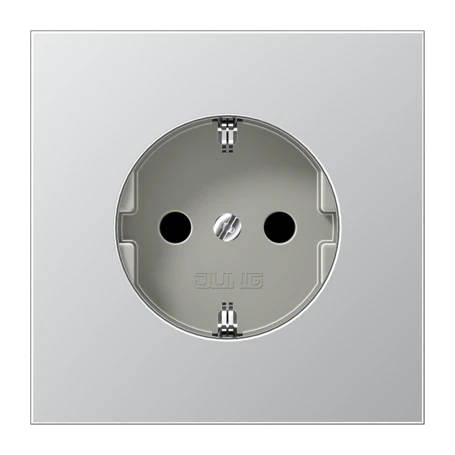

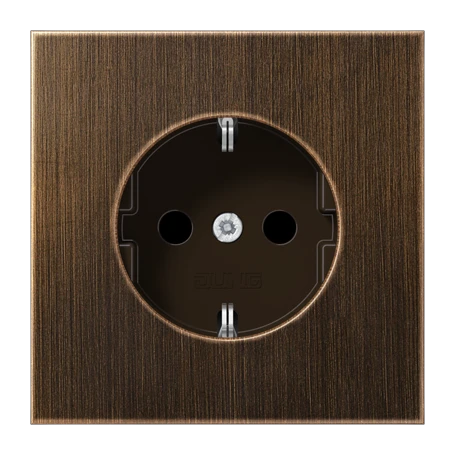

Metal versions

Accessories:
Black screws ref.-no.: S-NFB SCHUKO SW

Read less... Read more...

Individual colour printing possible

Article number:	LS 1520 KI GGO
EAN/GTIN:	4011377069077
Colour:	gold-plated
Material:	metal with gold plating
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	SG Select language Select language DE AT EN AE GB US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.104 KG
Length	70 MM
Height	40 MM
Width	70 MM
Carton
Packaging unit	1 pc.
Weight	0.124 KG
Length	84 MM
Height	72 MM
Width	84 MM
Outer carton
Packaging unit	10 pc.
Weight	1.392 KG
Length	362 MM
Height	90 MM
Width	182 MM
