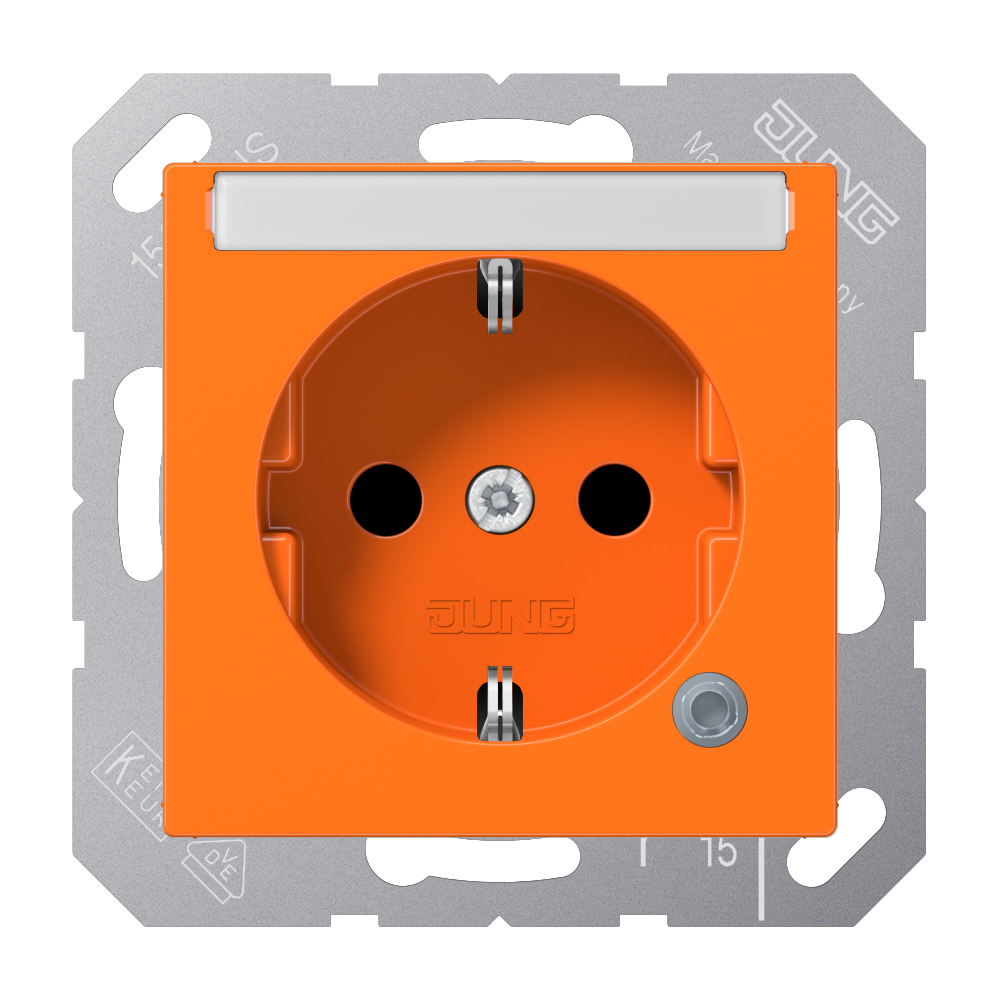

SCHUKO® socket, 16 A 250 V ~, with pilot light, with inscription field, Safety Plus, thermoplastic antibacterial, AS range, orange

ABA 1520 BFNAKO O

SCHUKO® socket, Safety Plus, with pilot light, with inscription field, thermoplastic antibacterial, orange
arrow-slider
arrow-slider
  • SCHUKO® socket, Safety Plus, with pilot light, with inscription field, thermoplastic antibacterial, orange
arrow-left-slim
arrow-right-slim
  • SCHUKO® socket, Safety Plus, with pilot light, with inscription field, thermoplastic antibacterial, orange
ABA 1520 BFNAKO O
BPIK_Elektrogeraete_Ruecknahme
arrow-left-slim
arrow-right-slim
  • SCHUKO® socket, Safety Plus, with pilot light, with inscription field, thermoplastic antibacterial, orange
with pilot light (green LED) ref.-no.: 193-LED GN
with enhanced contact protection / shutter (Safety Plus)
with inscription field 6 x 46 mm
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm2

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
Supporting frame, claws and claw screws are integrated into the earth protection.

Spare pilot light exchangeable from the front without disconnecting the mains
Spare part:
Transparent cover with paper inlay ref.-no.: A 20 NA

Thermoplastic (breakproof) high-gloss – antibacterial

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).
Read less... Read more...
discontinued
Date of discontinuation 11.09.2026
Individual inscription of paper inlays for incription fields possible
BPIK_Elektrogeraete_Ruecknahme
More articles

Information

Article number: ABA 1520 BFNAKO O
EAN/GTIN: 4011377158498
Colour: orange
Material: thermoplastic antibacterial
Connection: screwless terminals
for rigid and flexible wires
Width: 55 mm
Height: 55 mm
Date of discontinuation: 11.09.2026
Read less... Read more...
Downloads
Show all downloads
Tendering text
SG
Select language
Select language
EN
DE
AT
AE
GB
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
EC Declaration of Conformity
SG
Select language
Select language
EN
DE
AT
AE
GB
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Product data sheet
SG
Select language
Select language
DE
AT
EN
AE
GB
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.092 KG
Length 71 MM
Height 39 MM
Width 71 MM
Carton
Packaging unit 10 pc.
Weight 0.921 KG
Length 290 MM
Height 80 MM
Width 180 MM
