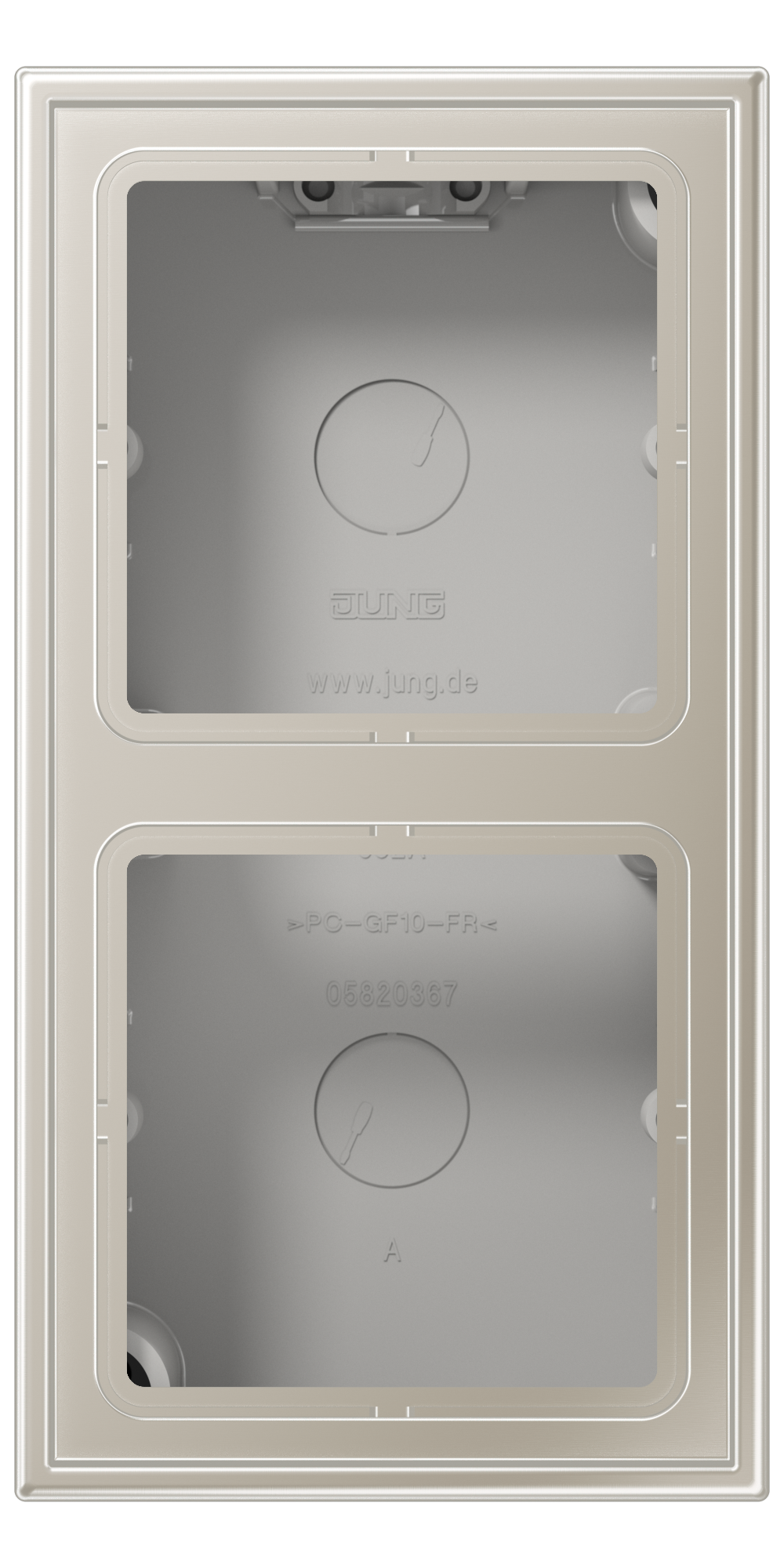

Surface cap 2-gang, LS CUBE, duroplastic lacquered, stainless steel, vertical and horizontal installation

ES 2582 A-L

ES 2582 A-L

with integrated frame and non-flammable ground plate
for inserts with covers of the LS range (except LS 1912 toggle switches, key switches ref.-no. ..15, 3-level-switch and socket for Switzerland type 13)
152 x 81 x 47 mm
Installation depth max. 34 mm

metal colours (duroplastic lacquered)

Spare part:
mounting box ref.-no.: 582 A

Read less... Read more...

Article number:	ES 2582 A-L
EAN/GTIN:	4011377048737
Colour:	stainless steel
Material:	duroplastic lacquered
Version:	2-gang

Read less... Read more...

Downloads

Show all downloads

Tendering text	SG Select language Select language EN DE AT AE GB ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	SG Select language Select language DE AT EN AE GB US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.232 KG
Length	159 MM
Height	92 MM
Width	92 MM
Carton
Packaging unit	1 pc.
Weight	0.232 KG
Length	159 MM
Height	92 MM
Width	92 MM
Outer carton
Packaging unit	10 pc.
Weight	2.504 KG
Length	460 MM
Height	190 MM
Width	192 MM
