JUNG HOME sockets
  • Schuko® sockets in LS 990 in Les Couleurs® Le Corbusier 4320F vert olive vif in the smart JUNG HOME system.
JUNG HOME Logo

The smart SCHUKO® sockets

The JUNG HOME SCHUKO® sockets are available in two versions, which can both be switched via the JUNG HOME push-buttons, the app or on the socket itself. Freely configurable timer switching points and an astro function are also integrated into the sockets. The JUNG HOME SCHUKO® socket Energy is additionally equipped with a function to measure energy consumption.

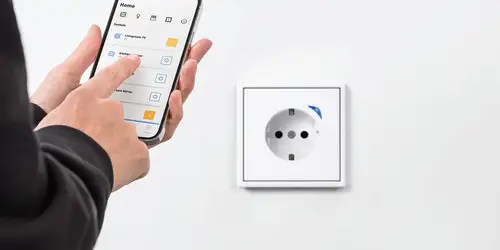

JUNG HOME SCHUKO® socket outlet in the LS 990 range in white, in use with the JUNG HOME app
Like all other JUNG SCHUKO® sockets, the versions for JUNG HOME are also safe thanks to the JUNG standard "Safety Plus".
Not just an ordinary socket. The JUNG HOME SCHUKO® socket at a glance:
  • Operating button with multi-coloured background lighting used to switch the socket
  • 16 timer programs with astro function* as well as summer and winter time with automatic adjustment according to seasons
  • Run-on time, switch-on / switch-off delay
  • Integrated 16A switch actuator
  • Fully encrypted wireless communication and mesh repeater function
  • With screw terminals for rigid and flexible wires up to 2.5 mm²
  • Requires an appliance box with mounting depth of min. 53 mm

JUNG HOME SCHUKO® socket Energy

This smart socket measures electricity consumption and allows for targeted energy management. The energy consumption data can be viewed from the app.

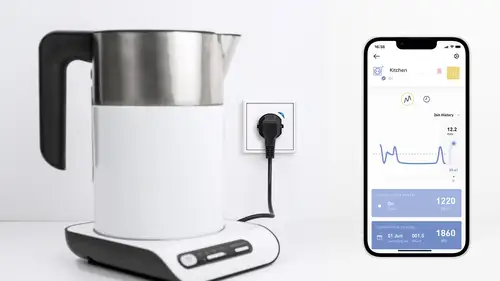

JUNG HOME SCHUKO® socket outlet and the JUNG HOME app in use with a kettle, focus on energy saving
Switching and measuring energy consumption has never been so easy.
Additional functions of the JUNG HOME SCHUKO® socket Energy:
  • Integrated power (W) and energy measurement (kWh)
  • Power measurement from 0.1 to 3650 watt
  • Recording the energy flow over the previous 24 hours and the previous 31 days via charts
  • Operating hours counter with an energy measurement period
  • Power Save function (to switch off standby electrical loads)
  • Master/slave function (to switch on a wirelessly linked electrical load depending on the electrical load connected)
  • Overcurrent protection shutdown
Bluetooth® MESH logo

Smart technology in the JUNG design

Intelligent, networked, sustainable, secure, flexible. We understand the ever-changing requirements for building control, energy management and cross-function networking. Our design standards for the JUNG HOME SCHUKO® socket remain and are governed by a simple concept: timelessness.

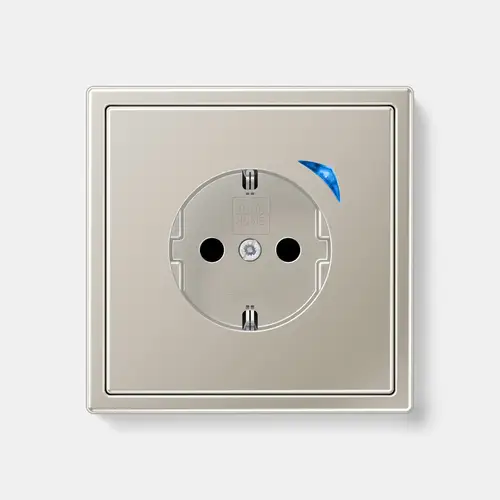

JUNG HOME Schuko® socket outlet in the LS 990 range made of stainless steel, detailed view.
JUNG HOME SCHUKO® socket
LS 990 in stainless steel
Show products

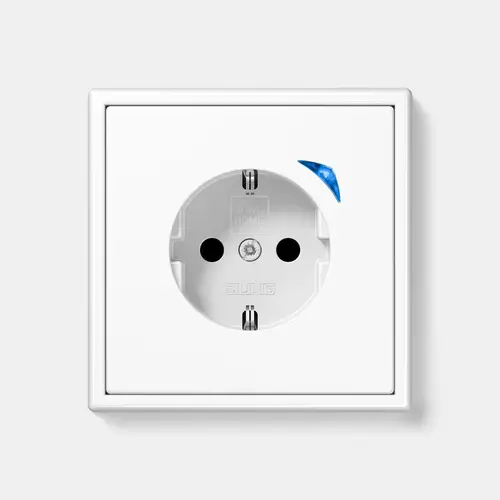

JUNG HOME Schuko® socket outlet in the LS 990 range in white, detailed view.
JUNG HOME SCHUKO® socket
LS 990 in white
Show products

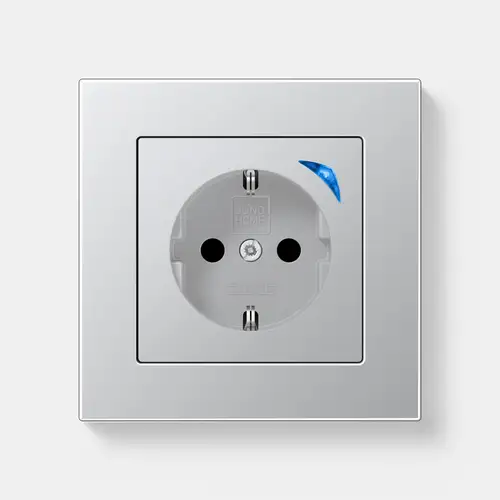

JUNG HOME Schuko® socket outlet in the A 550 range made of aluminium, detailed view.
JUNG HOME SCHUKO® socket
A 550 in aluminium
Show products
JUNG HOME Schuko® socket outlet in the A FLOW range in white, detailed view.
JUNG HOME SCHUKO® socket Energy
A FLOW in white
Show products

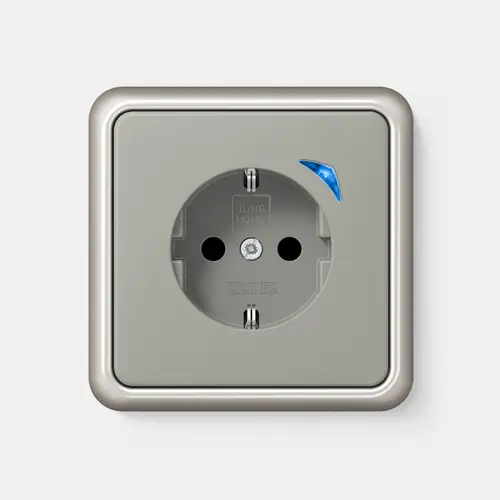

JUNG HOME Schuko® socket outlet in the CD 500 range in platinum, detailed view.
JUNG HOME SCHUKO® socket
CD 500 in platinum
Show products

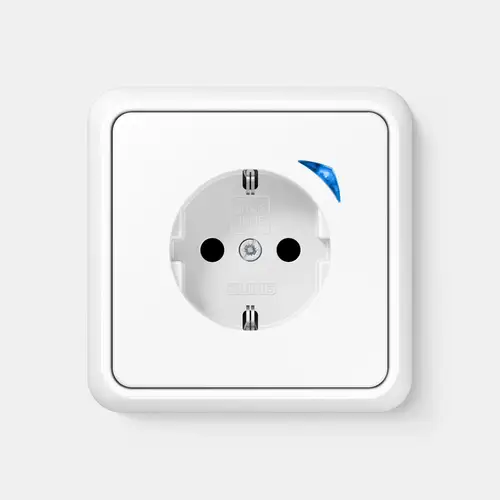

JUNG HOME Schuko® socket outlet in the CD 500 range in white, detailed view.
JUNG HOME SCHUKO® socket
CD 500 in white
Show products
LS range
Go to catalogue
A range
Go to catalogue
  • Mounting and installation of a Schuko® socket in the smart JUNG HOME system.

Upgrading to a smart home simplified

Using a 230-volt installation, completed in 5 minutes, no thorough renovation done; the existing socket is simply replaced with a new JUNG HOME SCHUKO® socket. After installation, the smart sockets can be configured through the JUNG HOME app, allocated to rooms or integrated into scenes.

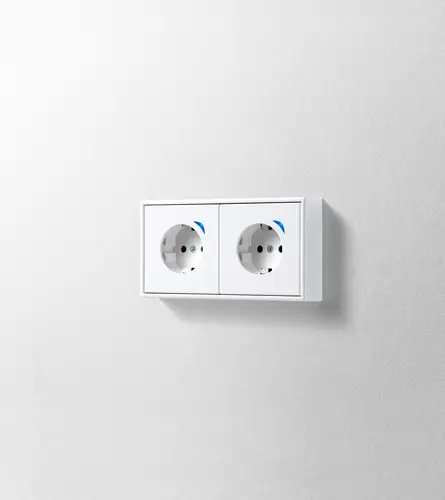

JUNG HOME SCHUKO® socket outlet 2-gang 28 mm installation height in the LS 990 range, white, detailed view in light perspective.

Frame with 28 mm height above surface

If a standard wall box (< 53 mm) is already mounted, the raised frame is suitable as it provides the space of 8 mm between the housing floor and the wall box floor required by the regulations.

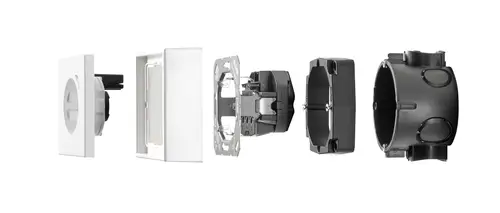

JUNG HOME SCHUKO® socket outlet in its individual parts, detailed view for mounting.
Installing the JUNG HOME SCHUKO® socket
If there is no deep wall box available when retrofitting, the shallow wall box already installed can be used. In that case, the supporting frame adapter and the raised frame with 28 mm can be mounted.

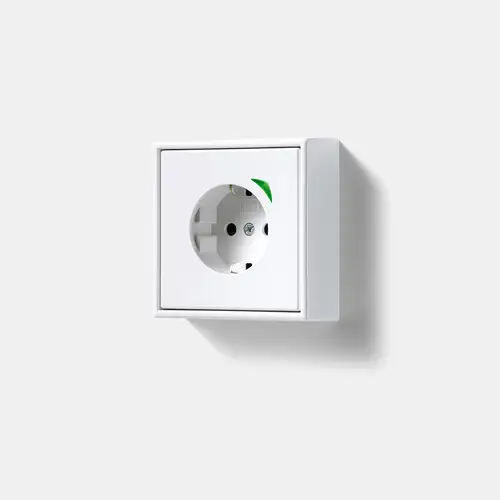

JUNG HOME SCHUKO® socket outlet 28 mm installation height in the LS 990 range, 1-gang in white, detailed view.
LS 990 - 1-gang

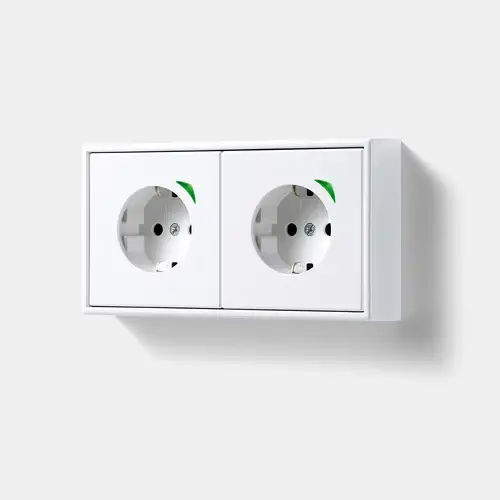

JUNG HOME SCHUKO® socket outlet 28 mm installation height in the LS 990 range, 2-gang in white, detailed view.
LS 990 - 2-gang
JUNG HOME SCHUKO® socket outlet 28 mm installation height in A 550,1-gang in white, detailed view.
A 550 - 1-gang

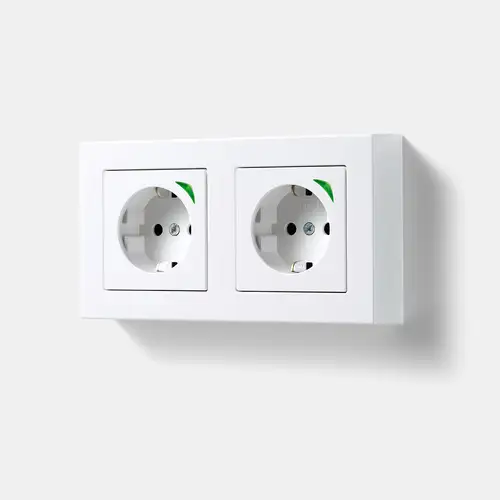

JUNG HOME SCHUKO® socket outlet 28 mm installation height in A 550, 2-gang in white, detailed view.
A 550 - 2-gang
