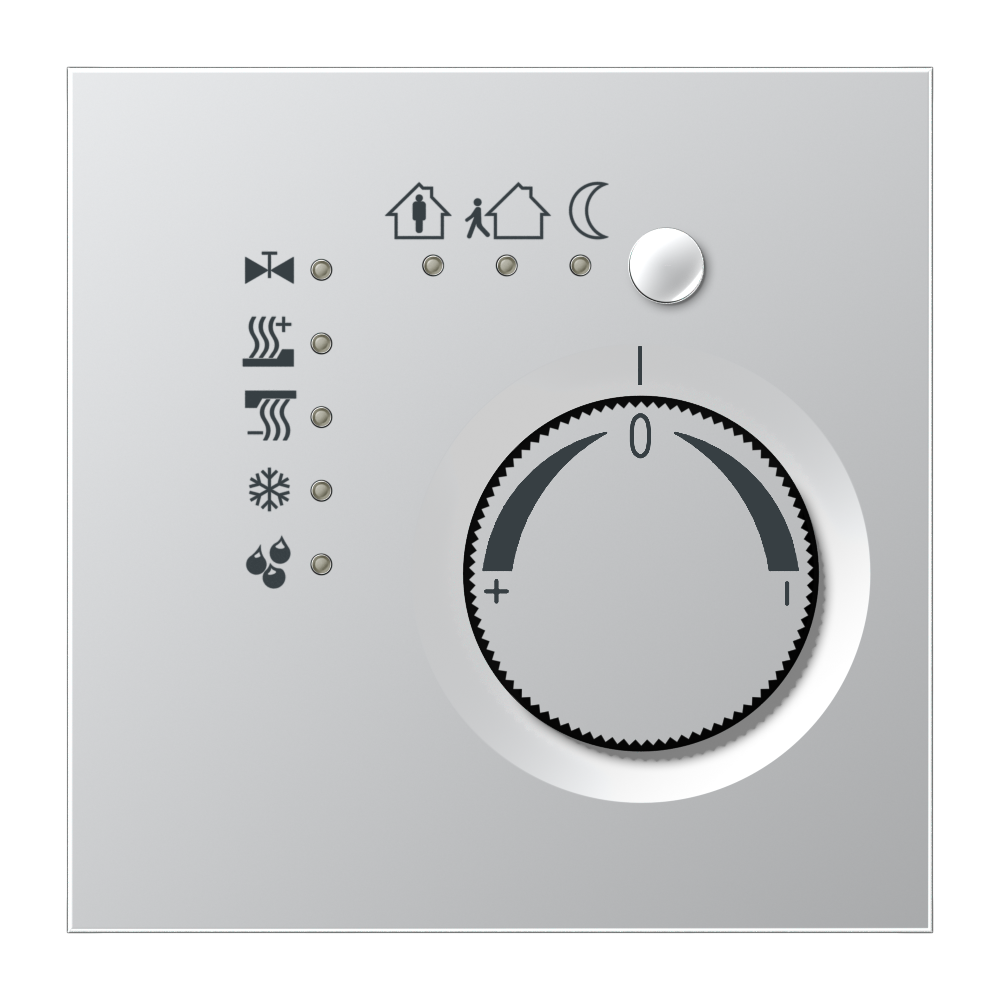

with integrated push-button interface 4-gangwith rotary knob for setpoint adjustmentOnly with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Heating, A/C, ventilation
Product type: Regulator
Intended use- Single-room temperature control in KNX installations
- Type of loads for binary output: LED or electronic relais
- Installation in flush box with dimensions according to DIN 49073
Product characteristics- Integrated bus coupling unit
- Measurement of room temperature and comparison with setpoint temperature
- Setpoint specification by selection of the operating mode
- Operating modes: comfort, standby, night operation, frost/heat protection
- Heating and cooling mode
- Heating and cooling with basic and additional step
- Setpoint adjustment
- Presence push-button
- Status LEDs
- Push-button interface with four inputs or two outputs (0.8 mA) and two inputs, e.g. for window contacts, push-buttons, LEDs, etc.
- Function of the inputs: switching, dimming, shutter control, light scene extension, brightness or temperature value transmitter
- Optional: External temperature sensor (ref.-no.: FF NTC) connectable to input 4

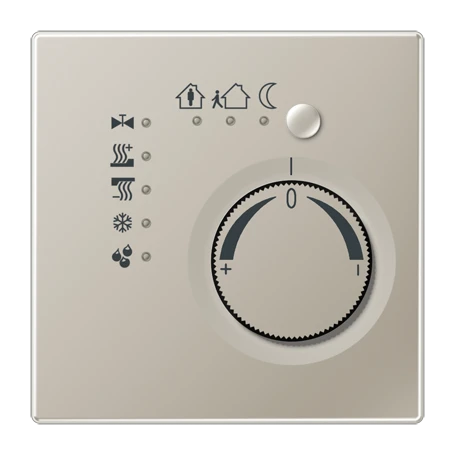

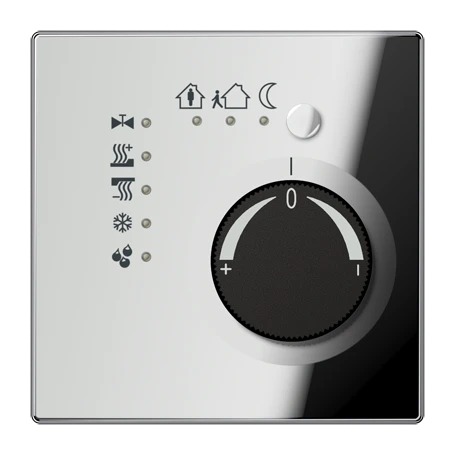

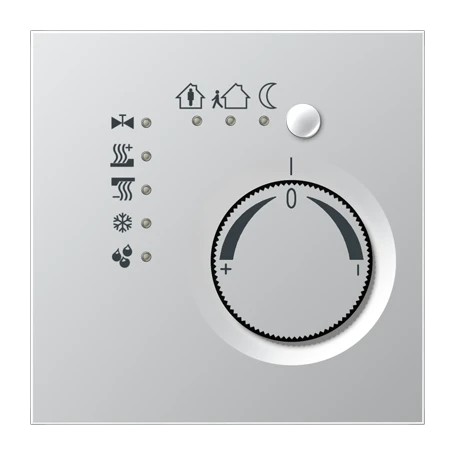

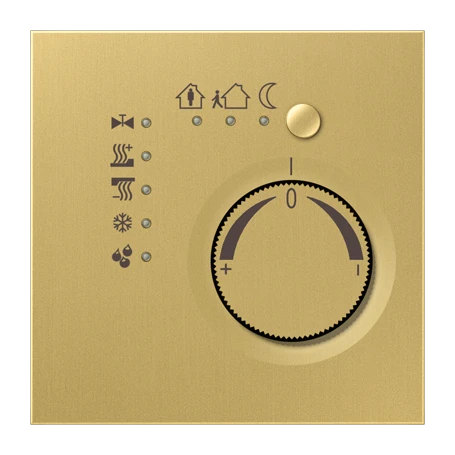

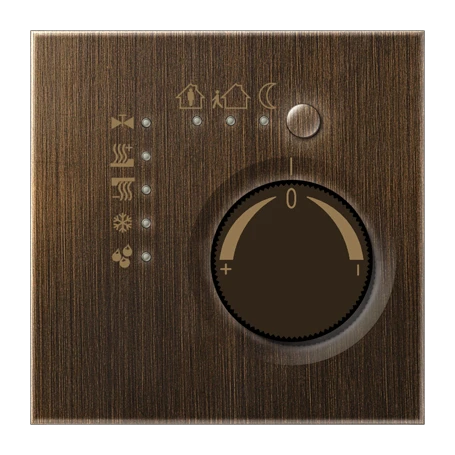

Metal versions
